Product Specifications
| # Manufacturer Number | 160116 |
| Diameter (Decimal Inch) | 0.0669" |
| Diameter (mm) | 17.00mm |
| Shank Size (Decimal Inch) | 0.0625" |
| Shank Size (Inch) | 1/16" |
| Overall Length (Decimal Inch) | 1.0630" |
| Overall Length (mm) | 27.00mm |
| Clamping Length (Decimal Inch) | 1.0630" |
| Clamping Length (mm) | 27.00mm |
| Square Size (Decimal Inch) | 0.1100" |
| Square Size (mm) | 4.83mm |
| Drill Size (Decimal Inch) | 0.1023" |
| Drill Size (mm) | 2.60mm |
| Useable Length (Decimal Inch) | 0.6260" |
| Useable Length (mm) | 15.90mm |
| Connection (Decimal Inch) | 0.1410 x 0.1100" |
| Connection (mm) | 3.58 x 2.79mm |
| Length / Diameter | 2.5xD |
| Helix Angle (Degree) | 15 Degree |
| Pitch | 40 |
| Size | #5 |
| Number of Flute | 3 |
| Thread Series | UNC |
| Pitch Limit | H2 |
| Chamfer Length | 2P-3P |
| Chamfer Type | Modified Bottoming |
| Coating | TiCN |
| Material | P-HSS |
| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov

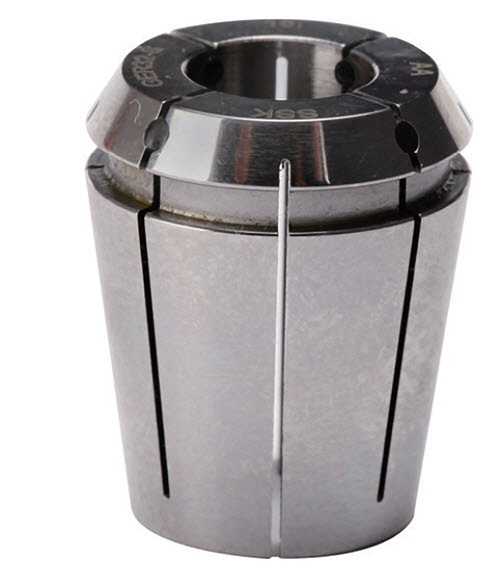

Related Products
Brand:
YG1
Type:
Precision Spring Collet
Collet Series:
ER16
Overall Length (Inch):
1"
Overall Length (mm):
27.00mm"
Overall Length (Decimal Inch):
1.0630"
interval quantity:
1
