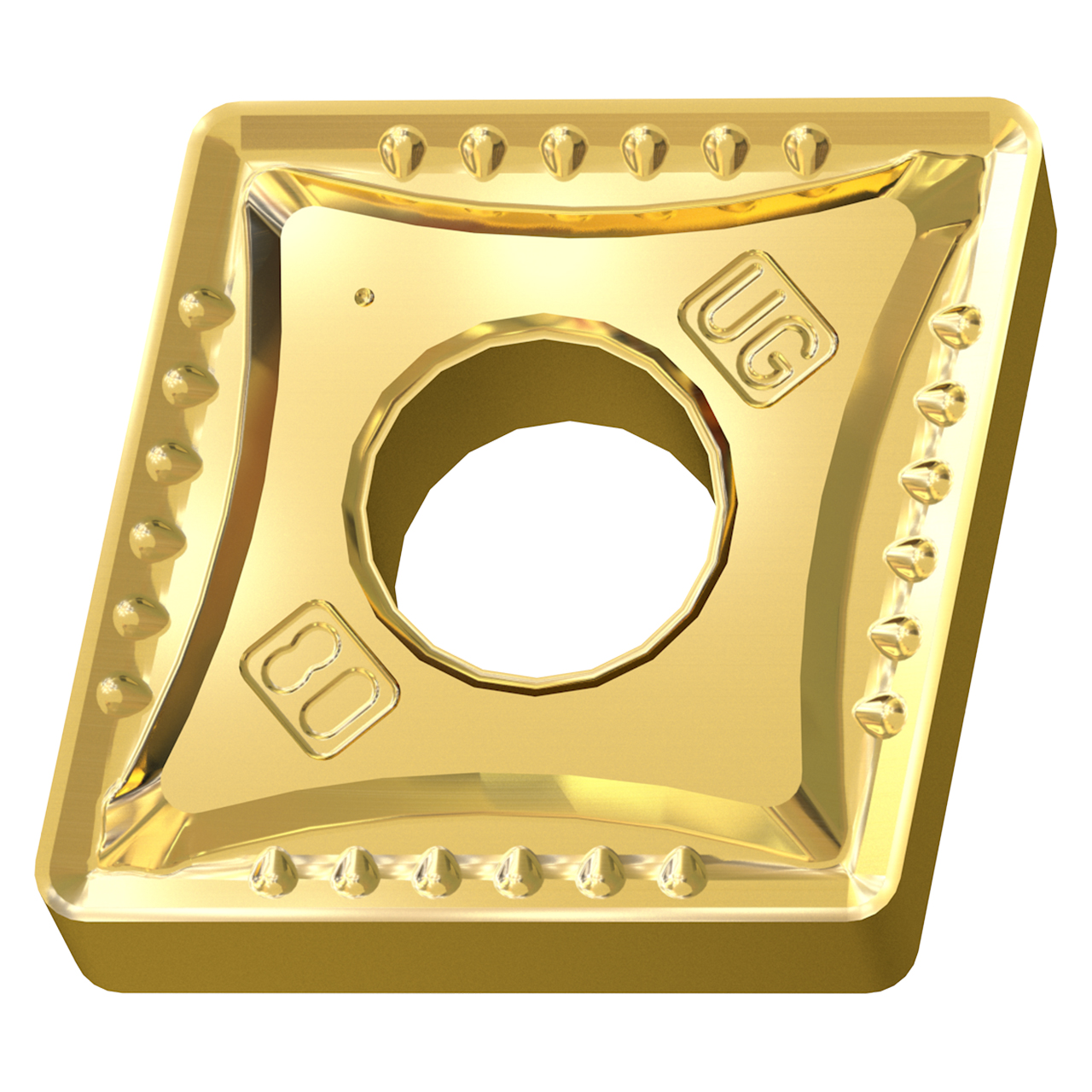

Product Specifications
| Manufacturer Part Number | 22002272 |
| Inscribed Circle Diameter (Inch) | 1/2" |
| Inscribed Circle Diameter (Decimal Inch) | 0.500" |
| Inscribed Circle Diameter (mm) | 12.70mm |
| Thickness (Inch) | 3/16" |
| Thickness (Decimal Inch) | 0.187" |
| Thickness (mm) | 4.76mm |
| Corner Radius (Inch) | 1/32" |
| Corner Radius (Decimal Inch) | 0.031" |
| Corner Radius (mm) | 0.80mm |
| Edge Length (Inch) | 42/89" |
| Edge Length (Decimal Inch) | 0.472" |
| Edge Length (mm) | 11.99mm |
| Depth of Cut (mm) | 1.50mm |
| Number of Cutting Edges | 4 |
| Chipbreaker Geometry | MF |
| Grade | YG401 |
| Coating | TiAlN |
| Material | Carbide |
| Product Type | Turning Negative Insert |
