Product Specifications
| EDP Number | 29013HF |
| Diameter (Decimal Inch) | 0.3125" |
| Diameter (Inch) | 5/16" |
| Diameter (mm) | 7.94mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 1.1250" |
| Length of Cut (Inch) | 1-1/8" |
| Length of Cut (mm) | 28.58mm |
| Overall Length (Decimal Inch) | 3.5000" |
| Overall Length (Inch) | 3-1/2" |
| Overall Length (mm) | 88.90mm |
| Round Radius (Decimal Inch) | 0.3125" |
| Round Radius (Inch) | 5/16" |
| Round Radius (mm) | 7.94mm |
| Number of Flutes | 4 |
| Helix Angle (Degree) | 0 Degree |
| Material | HSS |
| Coating | TiAlN-Futura |
| Shank Style | Flat |
| Cut Type | Corner Rounding |
| Corner Type | Corner Rounding |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1237 |

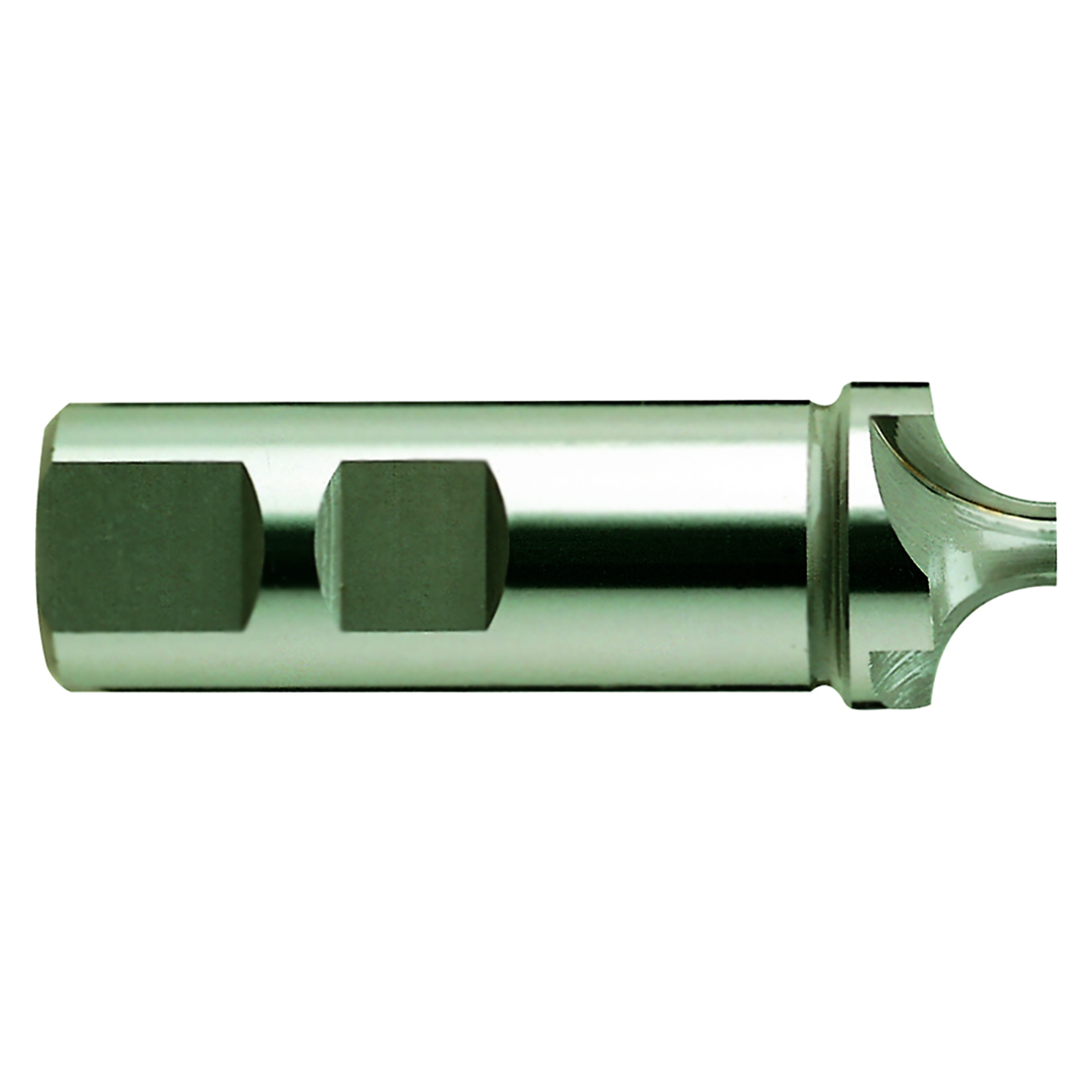

| Product Type | Corner Rounding End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Radius (Inch):
5/16"
Radius (Decimal Inch):
0.3125"
Radius (mm):
7.94mm
