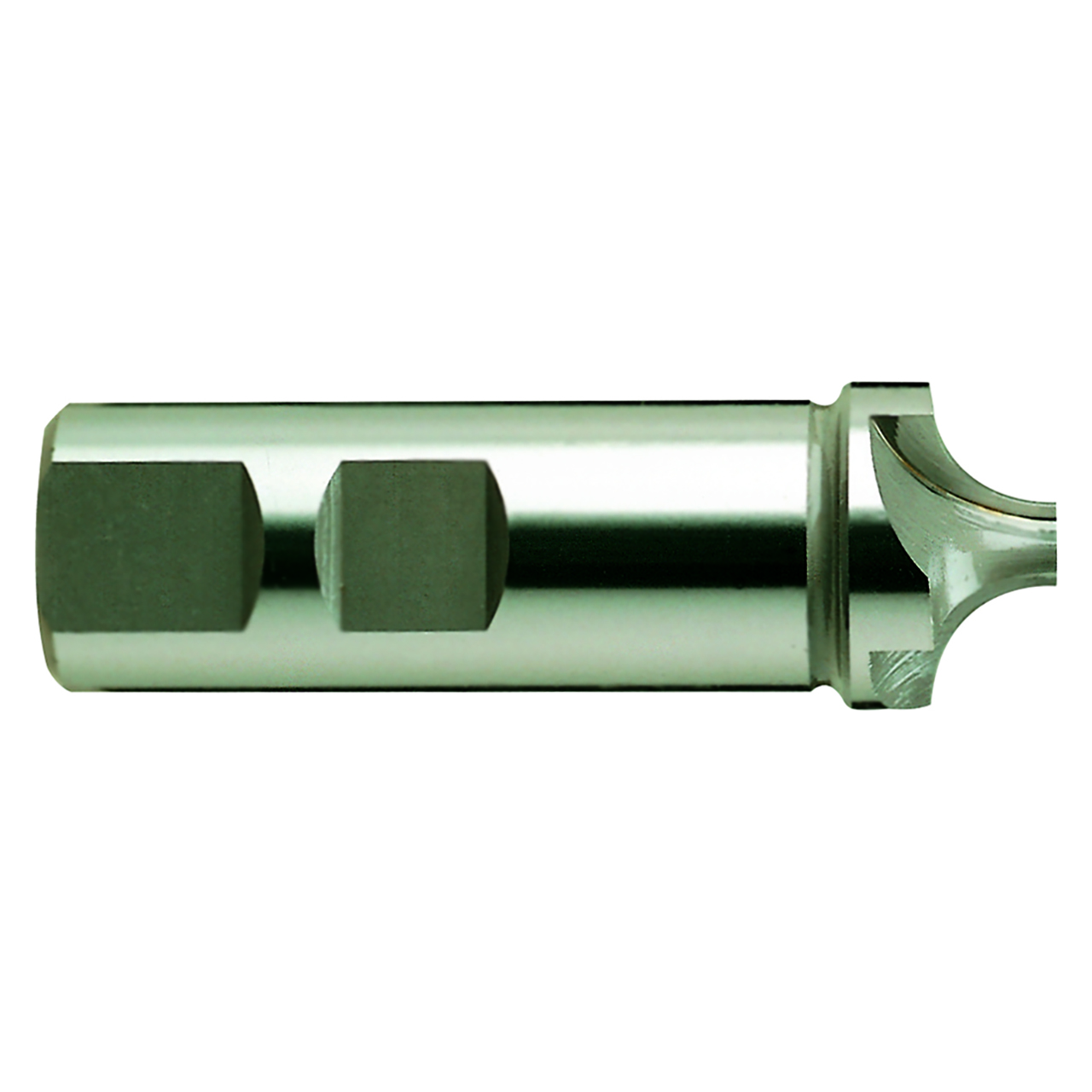

Product Specifications
| EDP Number | 29271 |
| Diameter (Decimal Inch) | 0.5000" |
| Diameter (Inch) | 1/2" |
| Diameter (mm) | 12.70mm |
| Shank Diameter (Decimal Inch) | 1.0000" |
| Shank Diameter (Inch) | 1" |
| Shank Diameter (mm) | 25.40mm |
| Length of Cut (Decimal Inch) | 1.5000" |
| Length of Cut (Inch) | 1-1/2" |
| Length of Cut (mm) | 38.10mm |
| Overall Length (Decimal Inch) | 4.1250" |
| Overall Length (Inch) | 4-1/8" |
| Overall Length (mm) | 104.78mm |
| Series | E2237 |
| Rounding Radius | 1/2" |
| Shank Style | Flat |
| Number of Flutes | 4 |
| Coating | Bright |
| Pilot Diameter | 3/8" |
| Cut Type | Corner Rounding |
| Cutting Direction | Right |
| Type | Corner Rounding End Mills |
| Application | P |
| Material | HSSCo8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Radius (Inch):
1/2"
Radius (Decimal Inch):
0.5000"
Radius (mm):
12.70mm
Mill Diameter (Inch):
1/2"
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.70mm
Number of Flutes:
4
Material:
HSSCo8
Finish/Coating:
Bright
Shank Diameter (Inch):
1"
Shank Diameter (Decimal Inch):
1.0000"
Shank Diameter (mm):
25.40mm
Overall Length (Inch):
4-1/8"
Overall Length (Decimal Inch):
4.1250"
Overall Length (mm):
104.78mm
interval quantity:
1
