Product Specifications

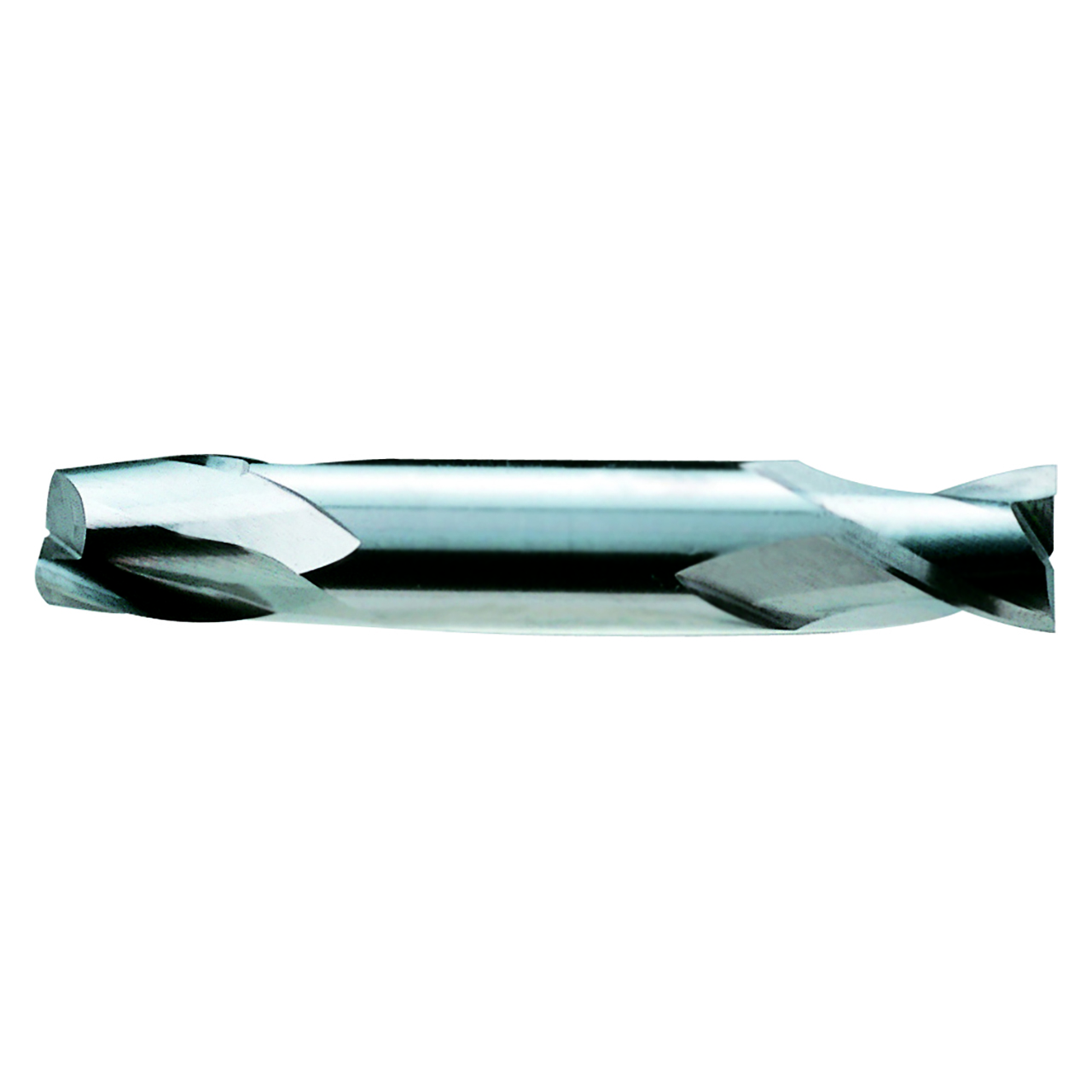

| EDP Number | 32562 |
| Diameter (Decimal Inch) | 0.1600" |
| Diameter (Inch) | 5/32" |
| Diameter (mm) | 3.97mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.3125" |
| Length of Cut (Inch) | 5/16" |
| Length of Cut (mm) | 7.94mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall-Length-(Inch) | 2" |
| Overall Length (mm) | 50.80mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | E5022 |
| Coating | Bright |
| Material | Carbide |
| Cut Type | Center |
| End Type | Double End |
| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
5/32"
Mill Diameter (Decimal Inch):
0.1600"
Mill Diameter (mm):
3.97mm
Number of Flutes:
2
Length of Cut (Inch):
5/16"
Length of Cut (Decimal Inch):
0.3125"
Length of Cut (mm):
7.94mm
Material:
Carbide
Finish/Coating:
Bright
Shank Diameter (Inch):
3/16"
Shank Diameter (Decimal Inch):
0.1875"
Shank Diameter (mm):
4.76mm
Application:
P
Single or Double End:
Double
Overall Length (Inch):
2"
Overall Length (Decimal Inch):
2.0000"
Overall Length (mm):
50.80mm
Helix Angle:
30 Degree
