| Manufacturer Part Number | 41391CE |
| Diameter (Decimal Inch) | 0.8750" |
| Diameter (Inch) | 7/8" |
| Diameter (mm) | 22.23mm |
| Shank Diameter (Decimal Inch) | 0.7500" |
| Shank Diameter (Inch) | 3/4" |
| Shank Diameter (mm) | 19.05mm |
| Length of Cut (Decimal Inch) | 2.0000" |
| Length of Cut (Inch) | 2" |
| Length of Cut (mm) | 50.80mm |
| Overall Length (Decimal Inch) | 4.2500" |
| Overall Length (Inch) | 4-1/4" |
| Overall Length (mm) | 107.95mm |
| Ball Nose Radius (Decimal Inch) | 0.4375" |
| Ball Nose Radius (mm) | 11.11mm |
| Series | E2110 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 2 |
| Ball Nose Radius (Inch) | 7/16" |
| Coating | TiAIN E |
| Cut Type | Center Cutting |
| Cutting Direction | Right |

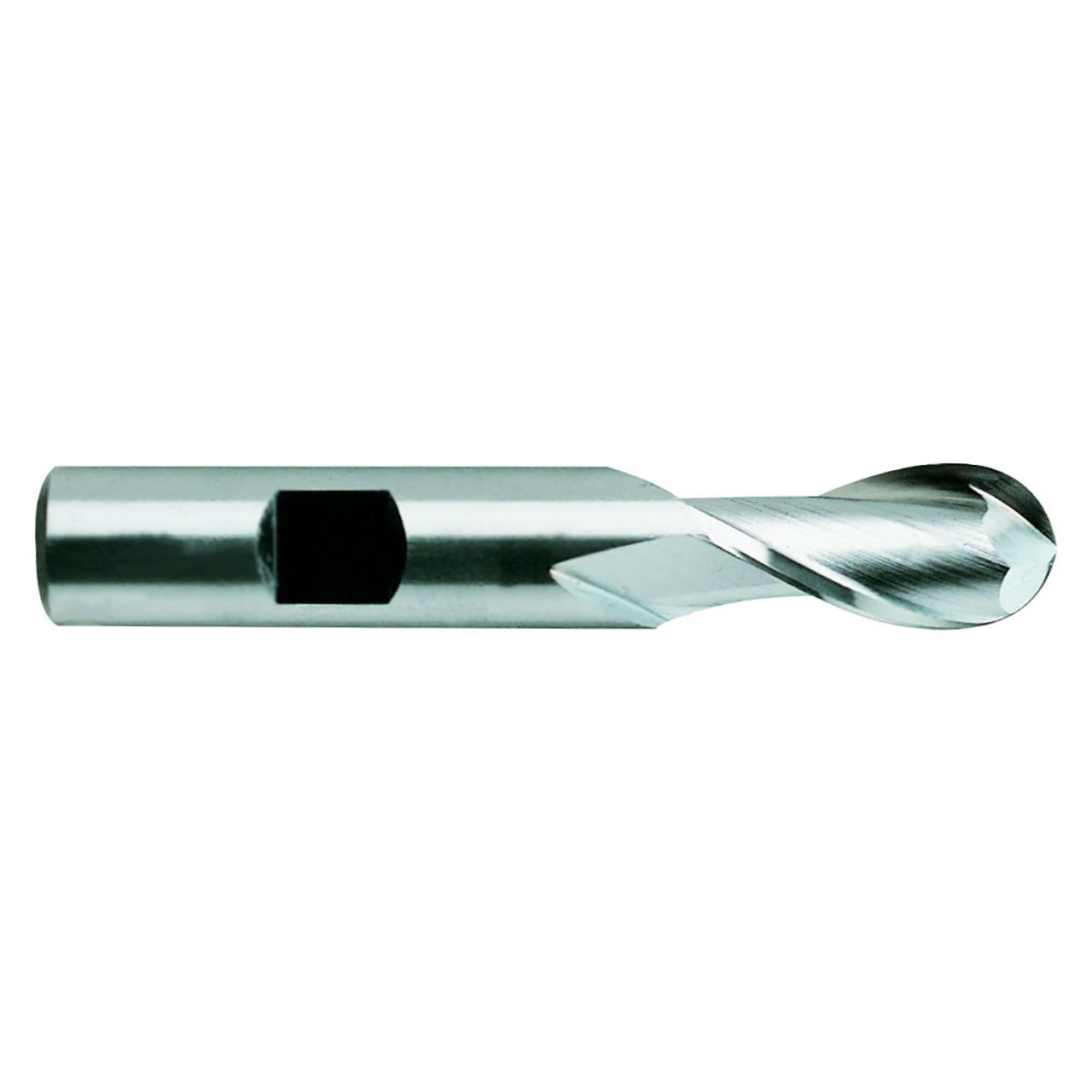

| Type | Ball Nose End Mill |
| Application | P |
| Material | HSSCo8 |
