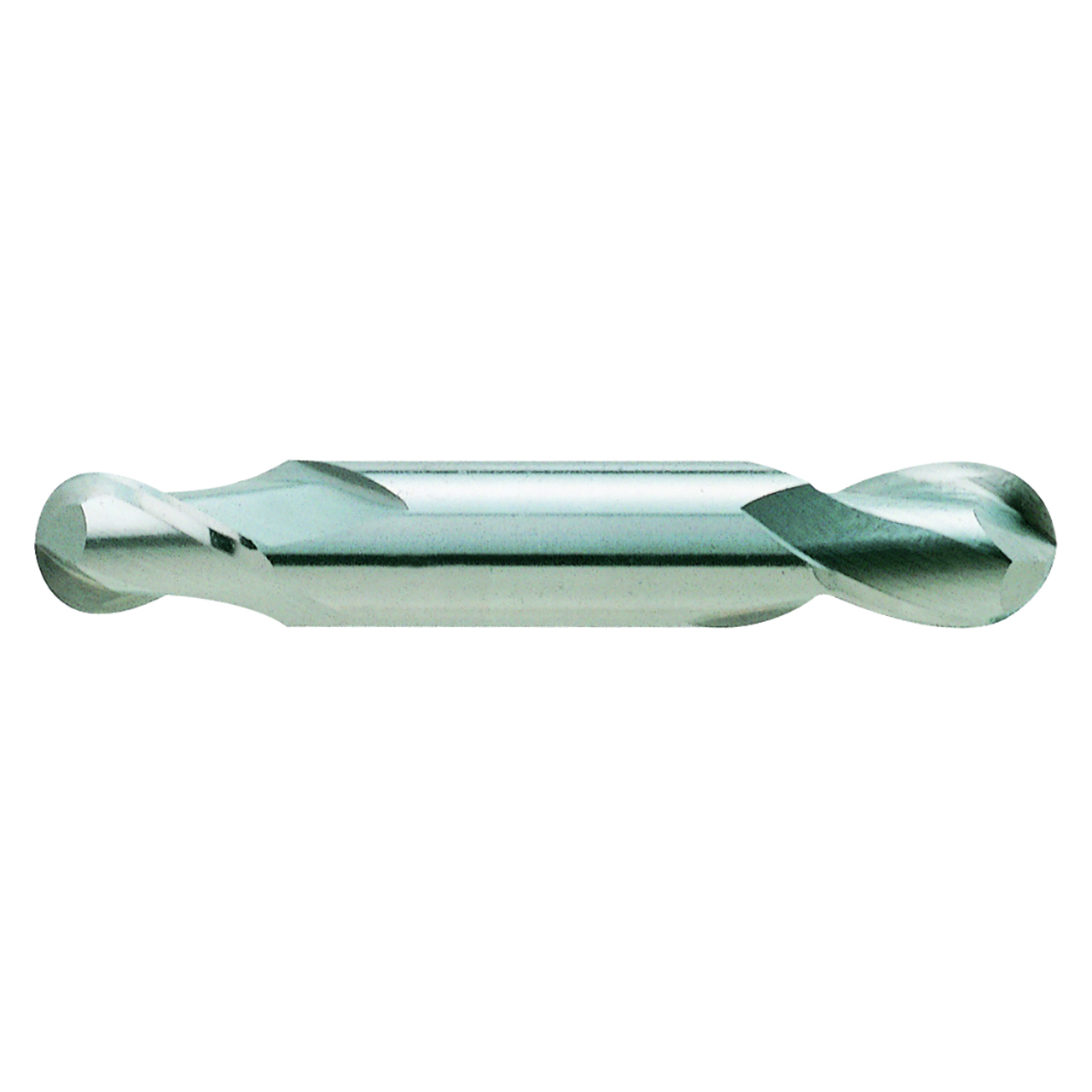

YG1 47593TC | 0.500" Diameter x 0.500" Shank x 0.625" LOC x 3.000" OAL x 30 Degree Helix Angle 2 TiCN Coated Carbide Ball End Mill

$148.78 $101.17
(You save $47.61)
Brand:
YG1
Mill Diameter (Decimal Inch):
0.5000"
Mill Diameter (mm):
12.70mm
Number of Flutes:
2
Length of Cut (Decimal Inch):
0.6250"
Length of Cut (mm):
15.88mm
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Shank Diameter (Decimal Inch):
0.5000"
Shank Diameter (mm):
12.70mm
Finish/Coating:
TiCN
Helix Angle:
30 Degree
Cutting Direction:
Right Hand
interval quantity:
1
SKU:
25047319
UPC:
Weight:
0.26 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
Manufacturer Part Number47593TC
Diameter (Decimal Inch)0.5000"
Diameter (Inch)1/2"
Diameter (mm)12.70mm
Shank Diameter (Decimal Inch)0.5000"
Shank Diameter (Inch)1/2"
Shank Diameter (mm)12.70mm
Length of Cut (Decimal Inch)0.6250"
Length of Cut (Inch)5/8"
Length of Cut (mm)15.88mm
Overall Length (Decimal Inch)3.0000"
Overall Length (Inch)3"
Overall Length (mm)76.20mm
Ball Nose Radius (Inch)1/4"
Helix Angle (Degree)30 Degree
Number of Flutes2
Cutting DirectionRight
ApplicationP
Shank StylePlain
SeriesE5251
CoatingBright
MaterialCarbide
Cut TypeCenter
Length TypeStub
End TypeDouble End
Product TypeBall End Mill
