Product Specifications
| EDP Number | 52579 |
| Diameter (Decimal Inch) | 0.3100" |
| Diameter (Inch) | 5/16" |
| Diameter (mm) | 7.94mm |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Shank Diameter (Inch) | 5/16" |
| Shank Diameter (mm) | 7.94mm |
| Length of Cut (Decimal Inch) | 1.6250" |
| Length of Cut (Inch) | 1-5/8" |
| Length of Cut (mm) | 41.28mm |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall-Length-(Inch) | 4" |
| Overall Length (mm) | 101.60mm |
| Ball Nose Radius (Inch) | 5/32" |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 2 |
| Cutting Direction | Right |
| Application | p |
| Shank Style | Plain |
| Series | E5018 |
| Coating | Bright |
| Material | Carbide |
| Cut Type | Center |
| End Type | Single End |

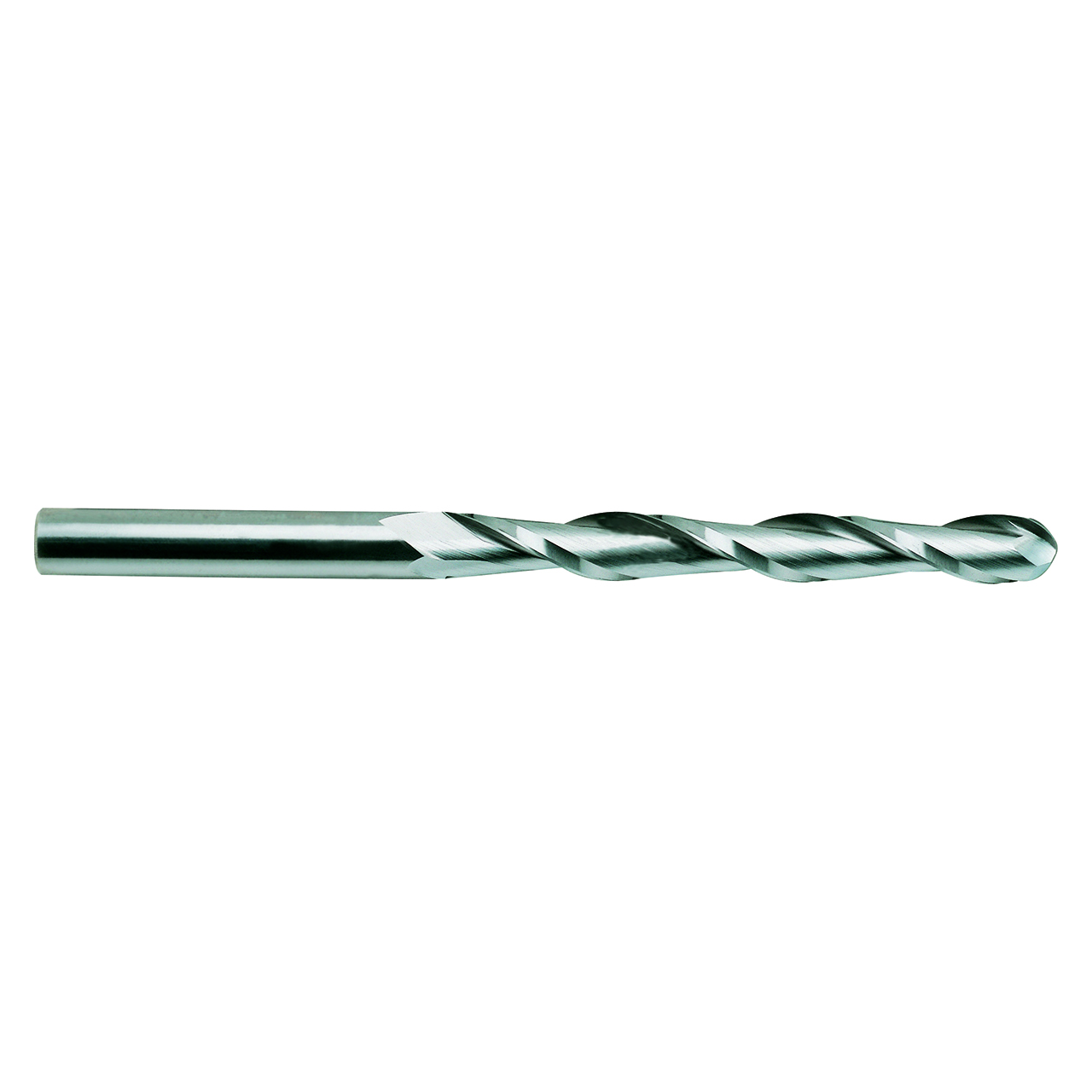

| Product Type | Ball End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3100"
Mill Diameter (mm):
7.94mm
Number of Flutes:
2
Length of Cut (Inch):
1-5/8"
Length of Cut (Decimal Inch):
1.6250"
Length of Cut (mm):
41.28mm
Material:
Carbide
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Finish/Coating:
Plain
Cutting Direction:
Right
Single or Double End:
Single
Helix Angle:
0
