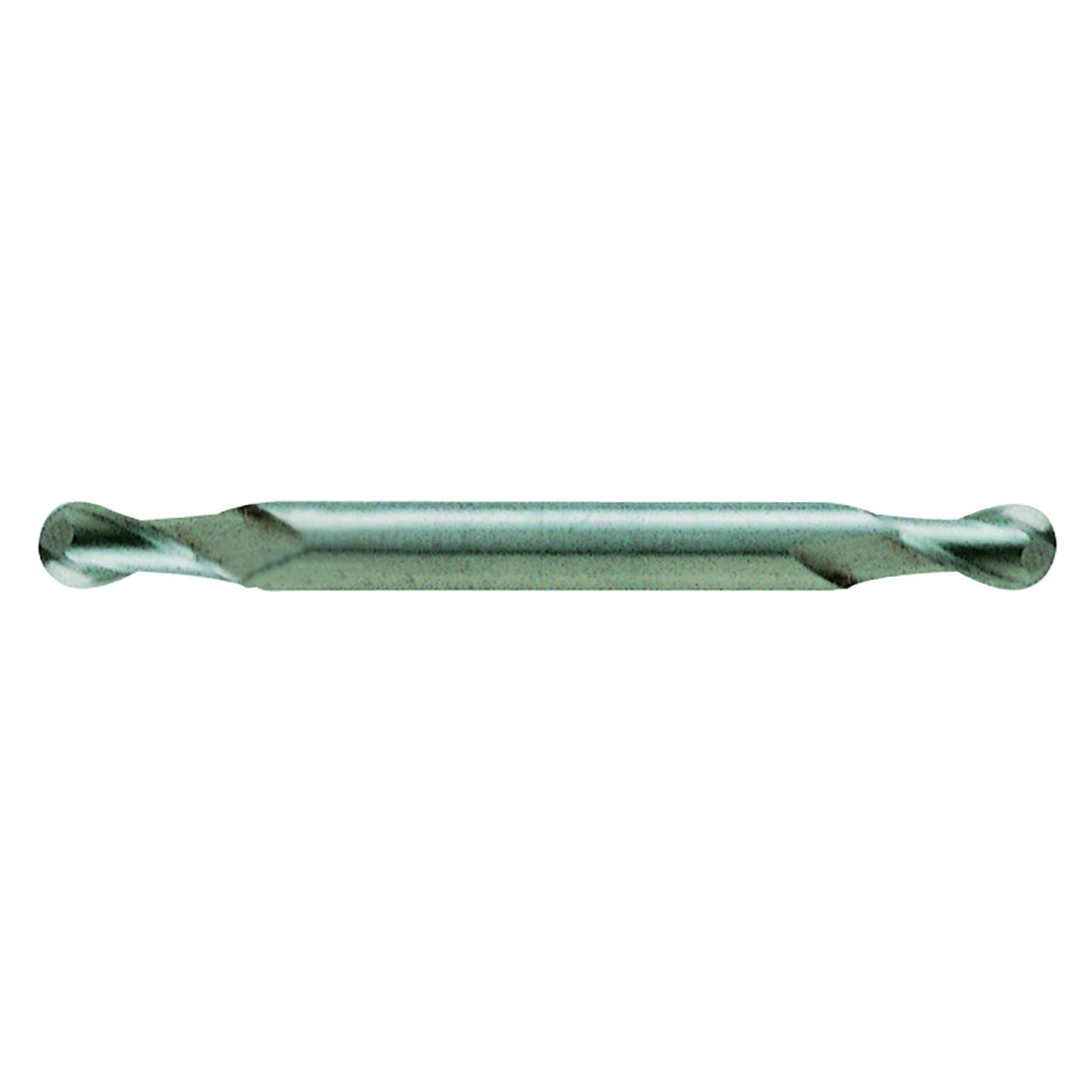

Product Specifications
| EDP Number | 55010HE |
| Diameter (Decimal Inch) | 0.0938" |
| Diameter (Inch) | 3/32" |
| Diameter (mm) | 2.38mm |
| Shank Diameter (Decimal Inch) | 0.1875" |
| Shank Diameter (Inch) | 3/16" |
| Shank Diameter (mm) | 4.76mm |
| Length of Cut (Decimal Inch) | 0.1406" |
| Length of Cut (Inch) | 9/64" |
| Length of Cut (mm) | 3.57mm |
| Overall Length (Decimal Inch) | 2.0000" |
| Overall Length (Inch) | 2" |
| Overall Length (mm) | 50.80mm |
| Ball Nose Radius (Decimal Inch) | 0.0469" |
| Ball Nose Radius (Inch) | 3/64" |
| Ball Nose Radius (mm) | 1.19mm |
| Round Radius (Inch) | 3/64" |
| Number of Flutes | 2 |
| Helix Angle (Degree) | 39 Degree |
| Material | HSS |
| Coating | TiALN-Extreme |
| Shank Style | Plain |
| Cut Type | Center Cut |
| Corner Type | Ball Nose |
| Cutting Direction | Right Hand |
| Application | P |
| Series | E1008 |
| End Type | Double End |
| Length Type | Stub |
| Product Type | Ball Nose End Mill |
