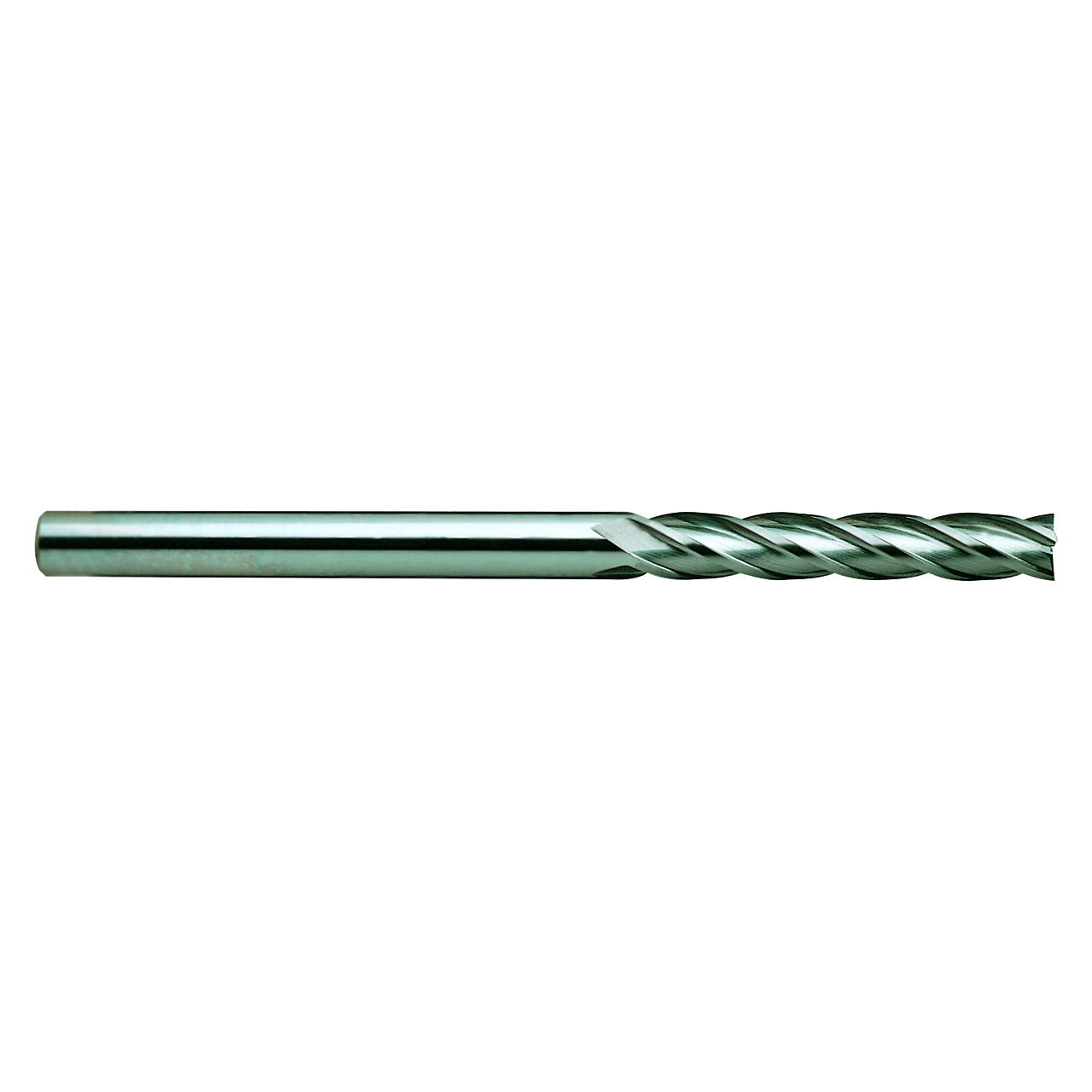

Product Specifications
| EDP Number | 55584TC |
| Diameter (Decimal Inch) | 0.3800" |
| Diameter (Inch) | 3/8" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 1.7500" |
| Length of Cut (Inch) | 1-3/4" |
| Length of Cut (mm) | 44.45mm |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall-Length-(Inch) | 4" |
| Overall Length (mm) | 101.60mm |
| Helix Angle (Degree) | 30 Degree |
| Number of Flutes | 4 |
| Cutting Direction | Right |
| Application | P |
| Shank Style | Plain |
| Series | E5065 |
| Coating | TiCN |
| Material | Carbide |
| Cut Type | Center |
| Length Type | Extra Long |
| End Type | Single End |
| Product Type | Square End Mill |
