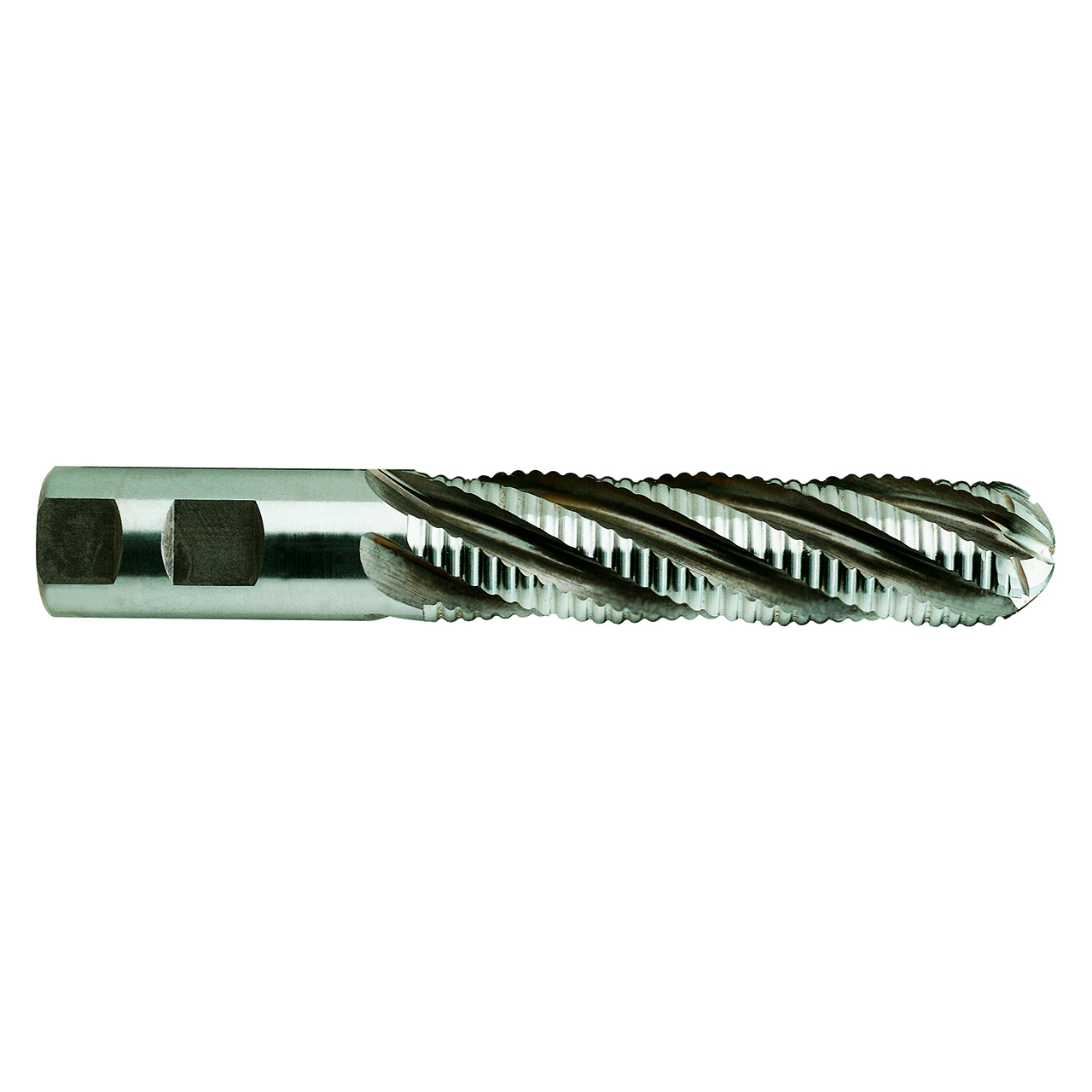

Product Specifications
| EDP Number | 68305CF |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (Inch) | 3/8" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 0.7500" |
| Length of Cut (Inch) | 3/4" |
| Length of Cut (mm) | 19.05mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall Length (Inch) | 2-1/2" |
| Overall Length (mm) | 63.50mm |
| Ball Nose Radius (Decimal Inch) | 0.1875" |
| Ball Nose Radius (mm) | 4.76mm |
| Series | E2193 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 4 |
| Ball Nose Radius (Inch) | 3/16" |
| Coating | TiAIN F |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Type | Ball Nose End Mill |
| Application | P |
| Material | HSSCo8 |
