Product Specifications
| EDP Number | 82584TF |
| Diameter (Decimal Inch) | 0.3800" |
| Diameter (Inch) | 3/8" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| Shank Diameter (mm) | 9.53mm |
| Length of Cut (Decimal Inch) | 1.0000" |
| Length of Cut (Inch) | 1" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall-Length-(Inch) | 2-1/2" |
| Overall Length (mm) | 63.50mm |
| Corner Radius (Inch) | 0.0400" |
| Helix Angle (Degree) | 45 Degree |
| Number of Flutes | 5 |
| Cutting Direction | Right |
| Application | P,M |
| Shank Style | Flat |
| Series | E5057 |
| Coating | YG-Tylon F |
| Material | Carbide |
| Cut Type | Center |
| End Type | Single End |

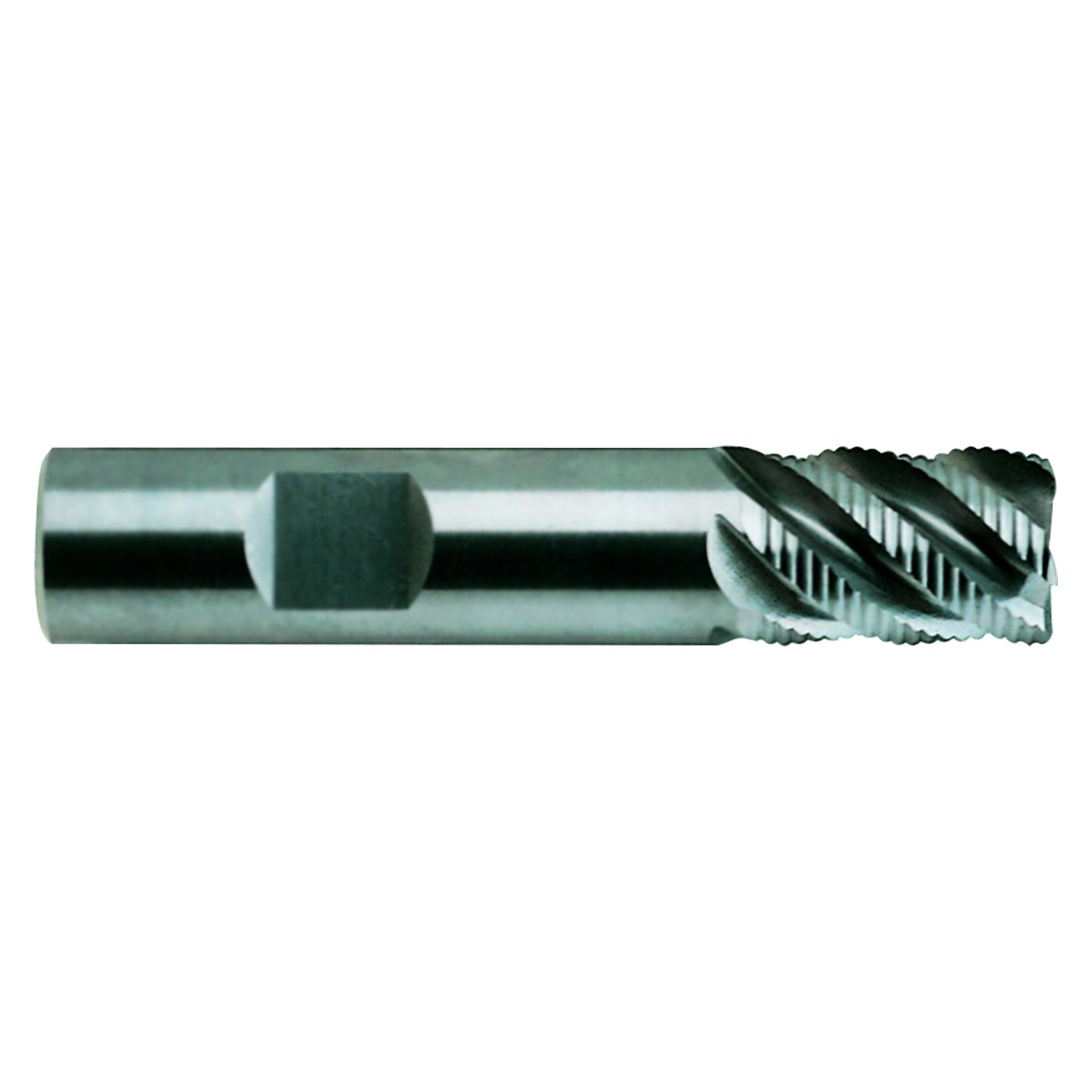

| Product Type | Roughing Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3800"
Mill Diameter (mm):
9.53mm
Number of Flutes:
5
End Type:
Corner Radius Roughing
Corner Radius (Decimal Inch):
0.0400"
Corner Radius (mm):
1.016mm
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.40mm
Material:
Carbide
Finish/Coating:
YG-Tylon F
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Application:
P,M
Single or Double End:
Single End
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
