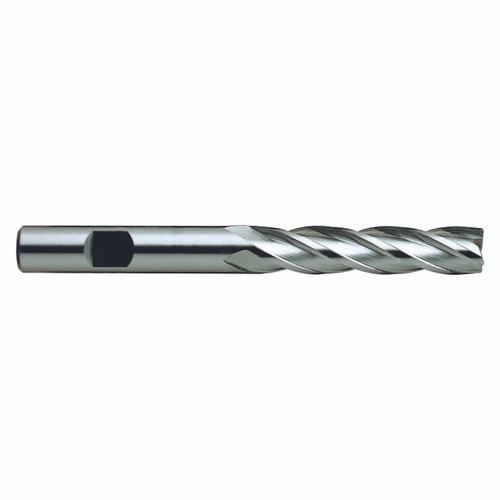

Product Specifications
| EDP Number | 8338 |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (Inch) | 5/8" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Shank Diameter (mm) | 15.88mm |
| Length of Cut (Decimal Inch) | 2.5000" |
| Length of Cut (Inch) | 2-1/2" |
| Length of Cut (mm) | 63.50mm |
| Overall Length (Decimal Inch) | 4.6250" |
| Overall Length (Inch) | 4-5/8" |
| Overall Length (mm) | 117.48mm |
| Series | E2162 |
| Shank Style | Flat |
| Helix Angle | 30 Degree |
| Number of Flutes | 6 |
| Coating | Bright |
| Cut Type | Center Cutting |
| Cutting Direction | Right |
| Type | Square End Mill |
| Application | P |
| Material | HSSCo8 |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6250"
Mill Diameter (mm):
15.88mm
Number of Flutes:
6
Length of Cut (Inch):
2-1/2"
Length of Cut (Decimal Inch):
2.5000"
Length of Cut (mm):
63.50mm
Shank Type:
Flat
Material:
HSSCo8
Finish/Coating:
Bright
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Application:
Center Cutting
Overall Length (Inch):
4-5/8"
Overall Length (Decimal Inch):
4.6250"
Overall Length (mm):
117.48mm
Helix Angle:
30 Degree
