Product Specifications
| EDP Number | 84588 |
| Diameter (Decimal Inch) | 0.4400" |
| Diameter (Inch) | 7/16" |
| Diameter (mm) | 11.11mm |
| Shank Diameter (Decimal Inch) | 0.4375" |
| Shank Diameter (Inch) | 7/16" |
| Shank Diameter (mm) | 11.11mm |
| Length of Cut (Decimal Inch) | 1.0000" |
| Length of Cut (Inch) | 1" |
| Length of Cut (mm) | 25.40mm |
| Overall Length (Decimal Inch) | 2.5000" |
| Overall-Length-(Inch) | 2-1/2" |
| Overall Length (mm) | 63.50mm |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 6 |
| Cutting Direction | Right |
| Application | P,M |
| Shank Style | Plain |
| Series | E5058 |
| Coating | Bright |
| Material | Carbide |
| Cut Type | Center |
| End Type | Single End |

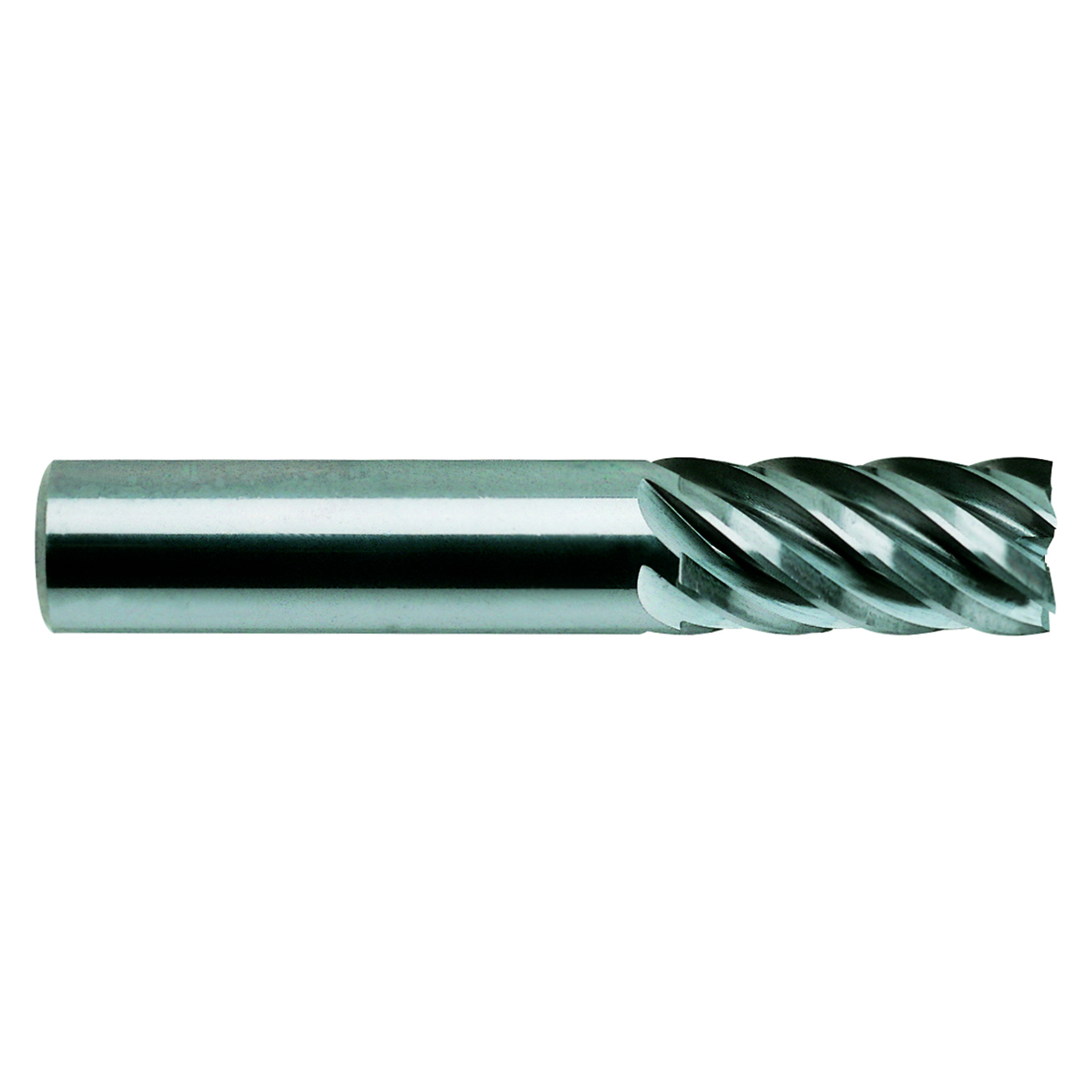

| Product Type | Square End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
7/16"
Mill Diameter (Decimal Inch):
0.4400"
Mill Diameter (mm):
11.11mm
Number of Flutes:
6
Length of Cut (Inch):
1"
Length of Cut (Decimal Inch):
1.0000"
Length of Cut (mm):
25.40mm
Material:
Carbide
Finish/Coating:
Bright
Shank Diameter (Inch):
7/16"
Shank Diameter (Decimal Inch):
0.4375"
Shank Diameter (mm):
11.11mm
Application:
P,M
Single or Double End:
Single
Overall Length (Inch):
2-1/2"
Overall Length (Decimal Inch):
2.5000"
Overall Length (mm):
63.50mm
Helix Angle:
40 Degree
