Product Specifications
| # Manufacturer Number | 93159 |
| Diameter (Decimal Inch) | 0.3125" |
| Diameter (Inch) | 5/16" |
| Diameter (mm) | 7.94mm |
| Shank Diameter (Decimal Inch) | 0.3125" |
| Shank Diameter (Inch) | 5/16" |
| Overall Length (Decimal Inch) | 3.0000" |
| Overall Length (Inch) | 3" |
| Overall Length (mm) | 76.20mm |
| Corner Radius (Decimal Inch) | 0.0200" |
| Corner Radius (Inch) | 1/50" |
| Corner Radius (mm) | 0.51mm |
| Number of Flute | 4 |
| Helix Angle (Degree) | 30 Degree |
| Coating | ALTiN |
| Material | Carbide |
| Cut Type | Center Cut |
| Shank Style | Plain |
| Cutting Direction | Right |
| Series | EM212 |

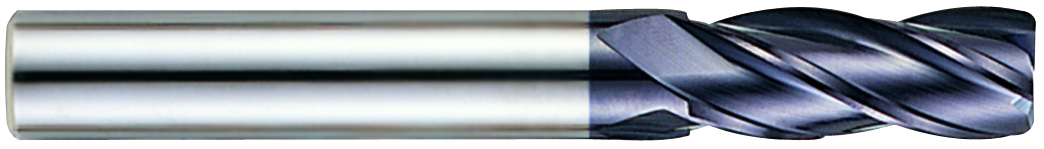

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
5/16"
Mill Diameter (Decimal Inch):
0.3125"
Mill Diameter (mm):
7.94mm
Number of Flutes:
4
Corner Radius (Inch):
1/50"
Corner Radius (Decimal Inch):
0.0200"
Corner Radius (mm):
0.51mm
Length of Cut (Inch):
1 3/8"
Length of Cut (Decimal Inch):
1.3750"
Length of Cut (mm):
34.93mm
Shank Type:
Plain
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
5/16"
Shank Diameter (Decimal Inch):
0.3125"
Shank Diameter (mm):
7.94mm
Application:
P
Overall Length (Inch):
3"
Overall Length (Decimal Inch):
3.0000"
Overall Length (mm):
76.20mm
Cutting Direction:
Right
