Product Specifications
| # Manufacturer Number | 93284 |
| Diameter (Decimal Inch) | 0.6250" |
| Diameter (Inch) | 5/8" |
| Diameter (mm) | 15.88mm |
| Shank Diameter (Decimal Inch) | 0.6250" |
| Shank Diameter (Inch) | 5/8" |
| Overall Length (Decimal Inch) | 3.6250" |
| Overall Length (Inch) | 3-5/8" |
| Overall Length (mm) | 92.08mm |
| Corner Radius (Decimal Inch) | 0.0600" |
| Corner Radius (Inch) | 3/50" |
| Corner Radius (mm) | 1.52mm |
| Number of Flute | 6 |
| Helix Angle (Degree) | 45 Degree |
| Coating | ALTiN |
| Material | Carbide |
| Cut Type | Center Cut |
| Shank Style | Plain |
| Cutting Direction | Right |
| Series | EM668 |

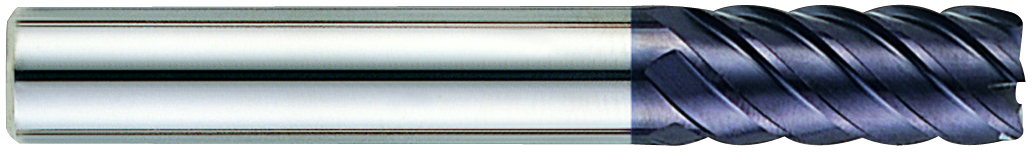

| Product Type | Corner Radius End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
5/8"
Mill Diameter (Decimal Inch):
0.6250"
Mill Diameter (mm):
15.88mm
Number of Flutes:
6
Corner Radius (Inch):
3/50"
Corner Radius (Decimal Inch):
0.0600"
Corner Radius (mm):
1.52mm
Length of Cut (Inch):
1 1/4"
Length of Cut (Decimal Inch):
1.2500"
Length of Cut (mm):
31.75mm
Shank Type:
Plain
Material:
Carbide
Finish/Coating:
AlTiN
Shank Diameter (Inch):
5/8"
Shank Diameter (Decimal Inch):
0.6250"
Shank Diameter (mm):
15.88mm
Application:
P
Overall Length (Inch):
3-5/8"
Overall Length (Decimal Inch):
3.6250"
Overall Length (mm):
92.08mm
Cutting Direction:
Right
