Product Specifications
| # Manufacturer Number | 93414 |
| Diameter (Decimal Inch) | 0.3750" |
| Diameter (Inch) | 3/8" |
| Diameter (mm) | 9.53mm |
| Shank Diameter (Decimal Inch) | 0.3750" |
| Shank Diameter (Inch) | 3/8" |
| LBS (Decimal Inch) | 1.6250" |
| LBS (Inch) | 1-5/8" |
| LBS (mm) | 41.28mm |
| Overall Length (Decimal Inch) | 4.0000" |
| Overall Length (Inch) | 4" |
| Overall Length (mm) | 101.60mm |
| Ball Nose Radius (Decimal Inch) | 0.1875" |
| Ball Nose Radius (Inch) | 3/16" |
| Ball Nose Radius (mm) | 4.76mm |
| Neck Diameter (Decimal Inch) | 0.3000" |
| Neck Diameter (Inch) | 3/10" |
| Neck Diameter (mm) | 7.62mm |
| Number of Flute | 2 |
| Helix Angle (Degree) | 30 Degree |
| Coating | ALTiN |
| Material | Carbide |
| Cut Type | Center Cut |
| Shank Style | Plain |
| Cutting Direction | Right |
| Series | EM096 |

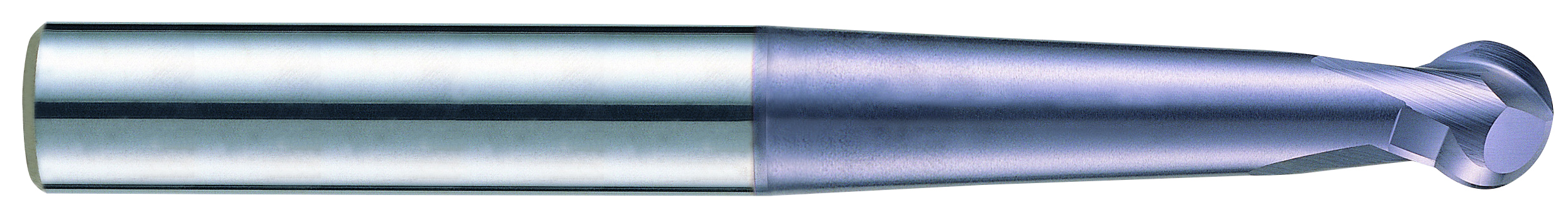

| Product Type | Ball Nose End Mill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Mill Diameter (Inch):
3/8"
Mill Diameter (Decimal Inch):
0.3750"
Mill Diameter (mm):
9.53mm
Number of Flutes:
2
Length of Cut (Inch):
3/10"
Length of Cut (Decimal Inch):
0.3000"
Length of Cut (mm):
7.62mm
Material:
Carbide
Shank Type:
Plain
Overall Length (Inch):
4"
Overall Length (Decimal Inch):
4.0000"
Overall Length (mm):
101.60mm
Shank Diameter (Inch):
3/8"
Shank Diameter (Decimal Inch):
0.3750"
Shank Diameter (mm):
9.53mm
Finish/Coating:
AlTiN
Cutting Direction:
Right
Helix Angle (Degree):
30 Degree
Center Cutting (yes/no):
Center Cut
Application:
P
