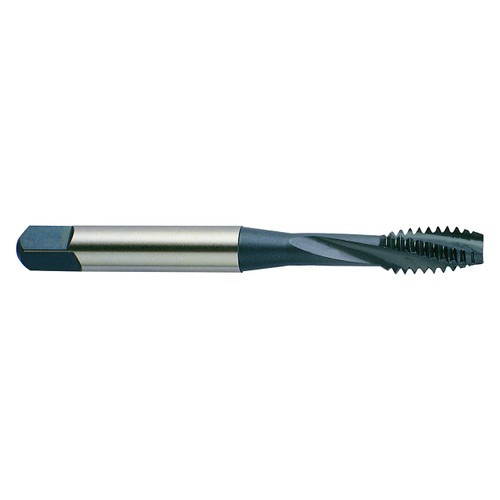

YG1 B3525 | UNC 7/16" - 14 Size x 0.323" Shank x 0.591" Thread Length x 3.160" OAL x 15 Degree Helix Angle H5 Modified Bottoming Chamfer Type 3 Flute Oxide Coated P-HSS B3 Spiral Flute Tap

Brand:

YG1

Thread Size (Inch):

7/16"

Thread Size (Decimal Inch):

0.4375"

Thread Size (mm):

11.11mm

Thread Limit:

H5

Number of Flutes:

3

Chamfer:

Modified Bottoming

Material:

P-HSS

Finish/Coating:

Oxide

Threads per Inch (TPI):

14

Overall Length (Decimal Inch):

3.1600"

Overall Length (mm):

80.26mm

interval quantity:

1

SKU:

15006743

UPC:

Weight:

0.07 LBS

Minimum Purchase:

1 unit

Shipping:

Calculated at Checkout
