| Manufacturer Part Number | BB506 |
| Thread Size (Inch) | 3/8" |
| Thread Size (Decimal Inch) | 0.375" |
| Thread Size (mm) | 9.53mm |
| Threads per Inch (TPI) | 24 |
| Thread Series | UNF |
| Pitch Limit | H6 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Overall Length (Decimal Inch) | 2.940" |
| Overall Length (mm) | 74.68mm |
| Thread Length (Decimal Inch) | 0.394" |
| Thread Length (mm) | 10.01mm |
| Square Length (Decimal Inch) | 0.440" |
| Square Length (mm) | 11.18mm |
| Shank Diameter (Decimal Inch) | 0.381" |
| Shank Diameter (mm) | 9.68mm |
| Square Size (Decimal Inch) | 0.286" |
| Square Size (mm) | 7.26mm |
| Neck Diameter (Decimal Inch) | 0.316" |
| Neck Diameter (mm) | 8.03mm |
| Neck Length (Decimal Inch) | 1.252" |
| Neck Length (mm) | 31.80mm |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 0.337" |
| Drill Size (mm) | 8.56mm |
| Connection Size (Decimal Inch) | 0.381" x 0.286" |
| Connection Size (mm) | 9.68 x 7.26mm |
| Length / Diameter | 2.5 X D |
| Usable Length (Decimal Inch) | 1.252" |
| Usable Length (mm) | 31.80mm |
| Ring Color | Blue Ring |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 3 |
| Coating | Steam Oxide |
| Material | HSS-PM |
| Blank Standard | 302A |

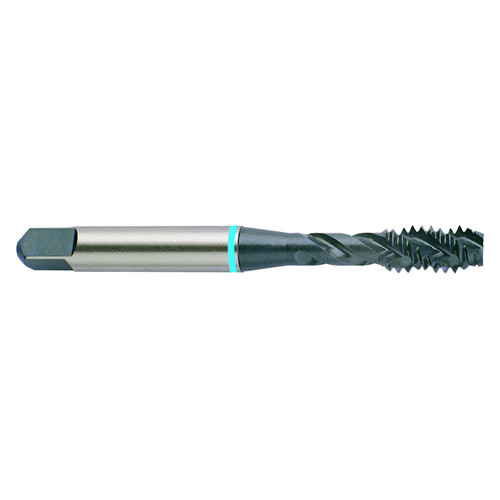

| Product Type | Spiral Flute Tap |
