| Manufacturer Part Number | BF202 |
| Thread Size | #5 |
| Thread Size (Decimal Inch) | 0.125" |
| Thread Size (mm) | 3.18mm |
| Threads per Inch (TPI) | 40 |
| Thread Series | UNC |
| Pitch Limit | H2 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Overall Length (Decimal Inch) | 2.205" |
| Overall Length (mm) | 56.01mm |
| Thread Length (Decimal Inch) | 0.236" |
| Thread Length (mm) | 5.99mm |
| Square Length (Decimal Inch) | 0.190" |
| Square Length (mm) | 4.83mm |
| Shank Diameter (Decimal Inch) | 0.141" |
| Shank Diameter (mm) | 3.58mm |
| Square Size (Decimal Inch) | 0.110" |
| Square Size (mm) | 2.79mm |
| Neck Diameter (Decimal Inch) | 0.090" |
| Neck Diameter (mm) | 2.29mm |
| Neck Length (Decimal Inch) | 0.626" |
| Neck Length (mm) | 15.90mm |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 0.102" |
| Drill Size (mm) | 2.60mm |
| Connection Size (Decimal Inch) | 0.141" x 0.110" |
| Connection Size (mm) | 3.58 x 2.79mm |
| Length / Diameter | 2.5 X D |
| Usable Length (Decimal Inch) | 0.626" |
| Usable Length (mm) | 15.90mm |
| Ring Color | Blue Ring |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 3 |
| Coating | Steam Oxide |
| Material | HSS-PM |
| Blank Standard | DIN/ANSI |

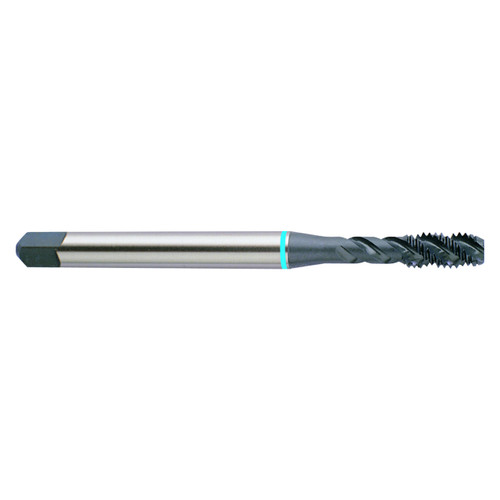

| Product Type | Spiral Flute Tap |
