Features:
Product Specifications
EDP Number | BG822H |
Thread Diameter (Inch) | 1-1/8" |
Diameter (Decimal Inch) | 1.1250" |
Diameter (mm) | 28.58mm |
Thread Pitch (TPI) | 7 TPI |
Overall Length (Decimal Inch) | 7.0866" |
Overall Length (mm) | 180.00mm |
Thread Length (Decimal Inch) | 1.2598" |
Thread Length (mm) | 32.00mm |
Square Length (Decimal Inch) | 0.8800" |
Square Length (mm) | 22.35mm |
Shank Diameter (Decimal Inch) | 0.8960" |
Shank Diameter (mm) | 22.76mm |
Square Size (Decimal Inch) | 0.6720" |
Square Size (mm) | 17.07mm |
Neck Diameter (Decimal Inch) | 0.8800" |
Neck Diameter (mm) | 22.35mm |
Drill Size (Decimal Inch) | 0.9951" |
Drill Size (mm) | 25.28mm |
Useable Length (Decimal Inch) | 3.7402" |
Useable Length (mm) | 95.00mm |
Series | BG |
Number of Flutes | 4 |
Thread Series | UNC |
Thread Class | 2B |
Chamfer Length | 2P-3P |
Tap Type | SPFL |
Chamfer Type | Modified Bottoming |
Coating | Hardslick |
Material | HSSE-V3 |
Blank Standard | DIN/ANSI |
Helix Angle (Degree) | 40 Degree |
Coolant Through | No |
Trade Name | Oil Field Taps |
Tap Type | Spiral Flute |

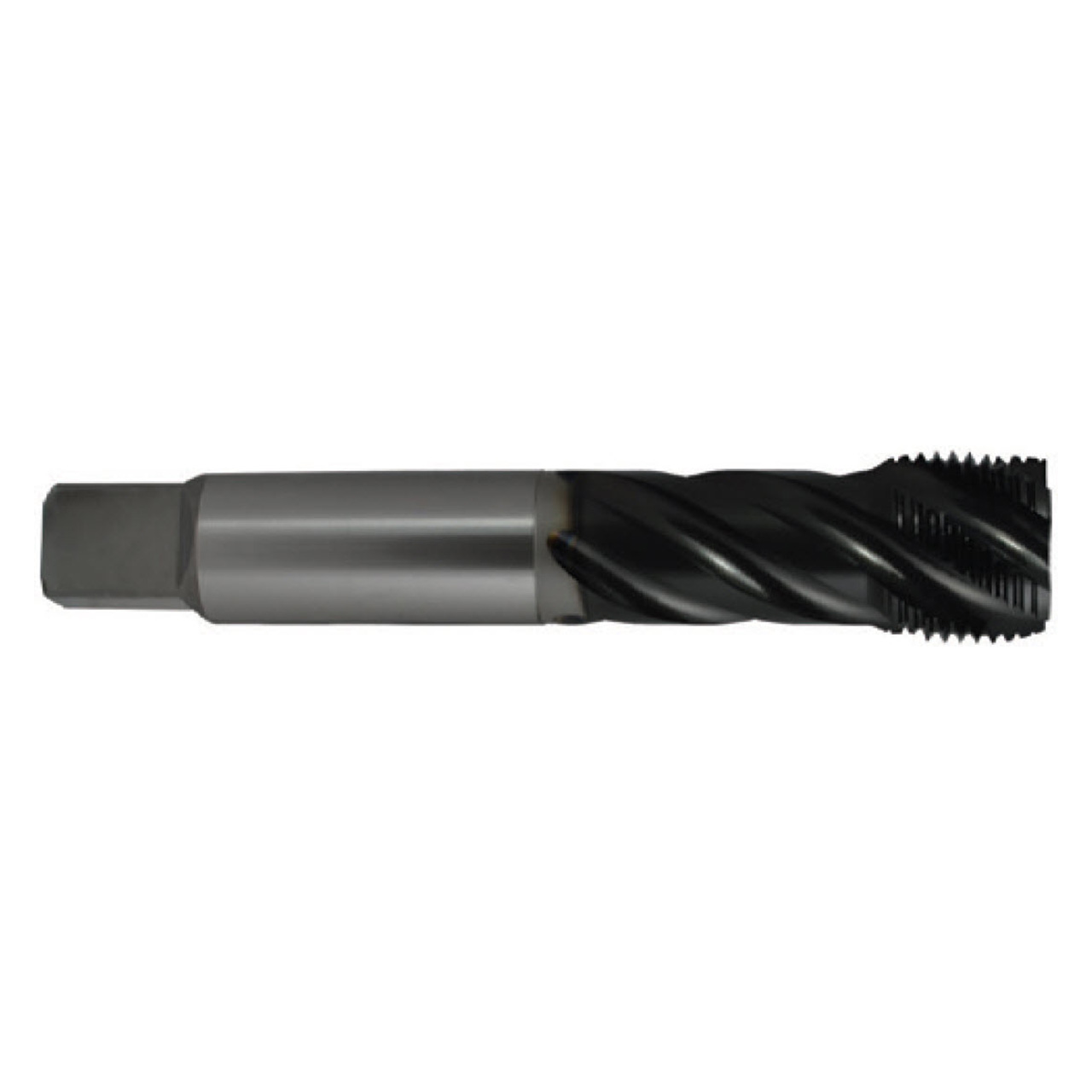

Product Type | Spiral Flute Modified Bottom Tap |
