Product Specifications
| Diameter (Decimal Inch) | BK343 |
| Diameter (Decimal Inch) | 0.1900" |
| Diameter (mm) | 4.83mm |
| Overall Length (Decimal Inch) | 2.7560" |
| Overall Length (mm) | 70.00mm |
| Thread Length (Decimal Inch) | 0.2760" |
| Thread Length (mm) | 7.00mm |
| Square Length (Decimal Inch) | 0.2500" |
| Square Length (mm) | 6.40mm |
| Shank Diameter (Decimal Inch) | 0.1940" |
| Shank Diameter (mm) | 4.90mm |
| Square Size (Decimal Inch) | 0.1520" |
| Square Size (mm) | 3.86mm |
| Neck Diameter (Decimal Inch) | 0.0610" |
| Neck Diameter (mm) | 3.71mm |
| Number of Flutes | 3 |
| Size & Pitch | #10-32 |
| Tap Type | SPFL |
| Size | #10 |
| Pitch | 32 TPI |
| Thread Series | UNF |
| Pitch Limit | H3 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Finish | Hardslick |
| Material | Super HSS |
| Blank Standard | DIN/ANSI |
| Helix Angle | 40 Degree |
| Length/Diameter | 2.5XD |
| Useable Length (Decimal Inch) | 0.9060" |
| Useable Length (mm) | 23.01mm |

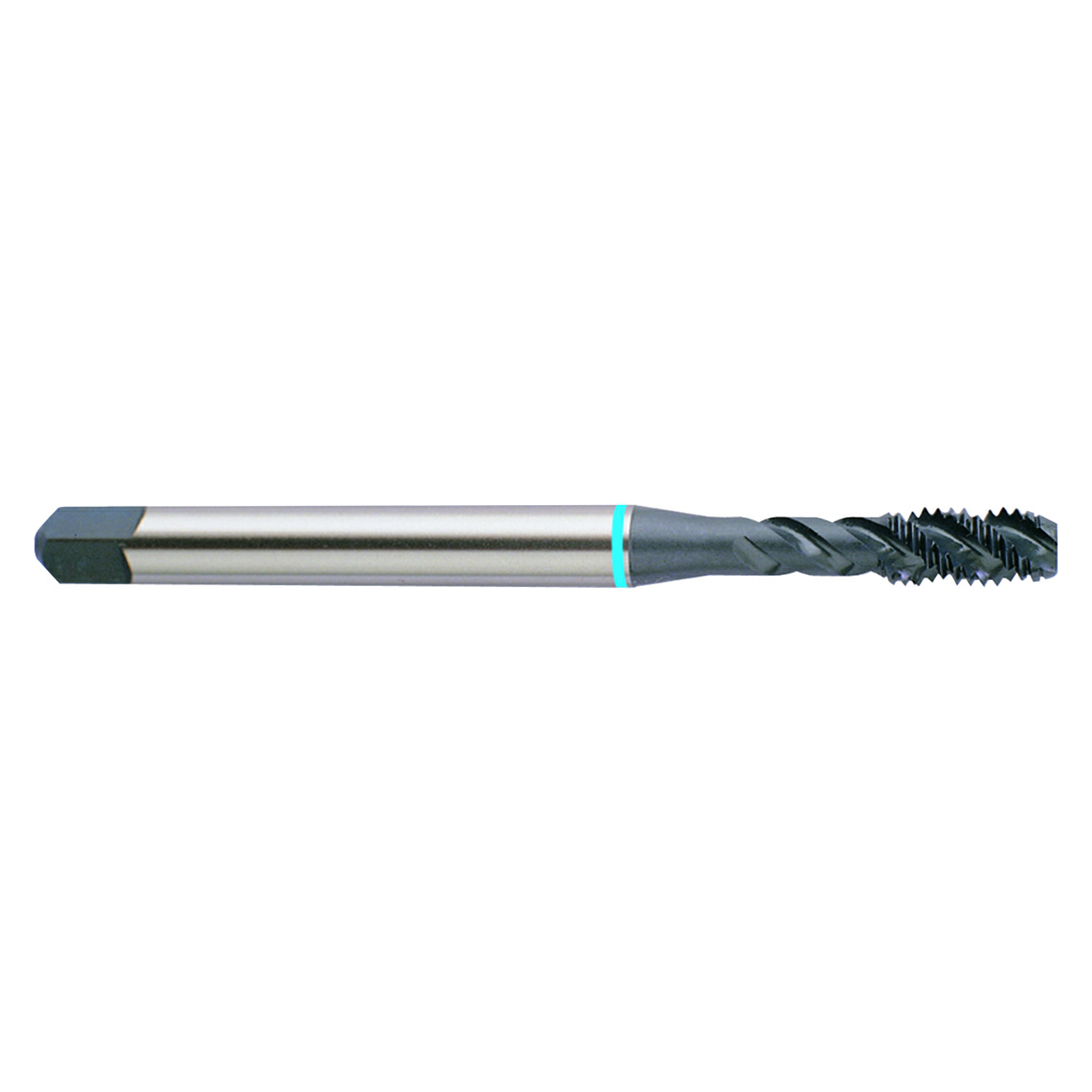

| Product Type | Spiral Flute Tap |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Thread Size (Inch):
0.1900"
Thread Size (mm):
4.83mm
Number of Flutes:
3
Chamfer:
Modified Bottoming
Material:
Super HSS
Finish/Coating:
Hardslick
Overall Length (Inch):
2.7560"
Overall Length (mm):
70.00mm
