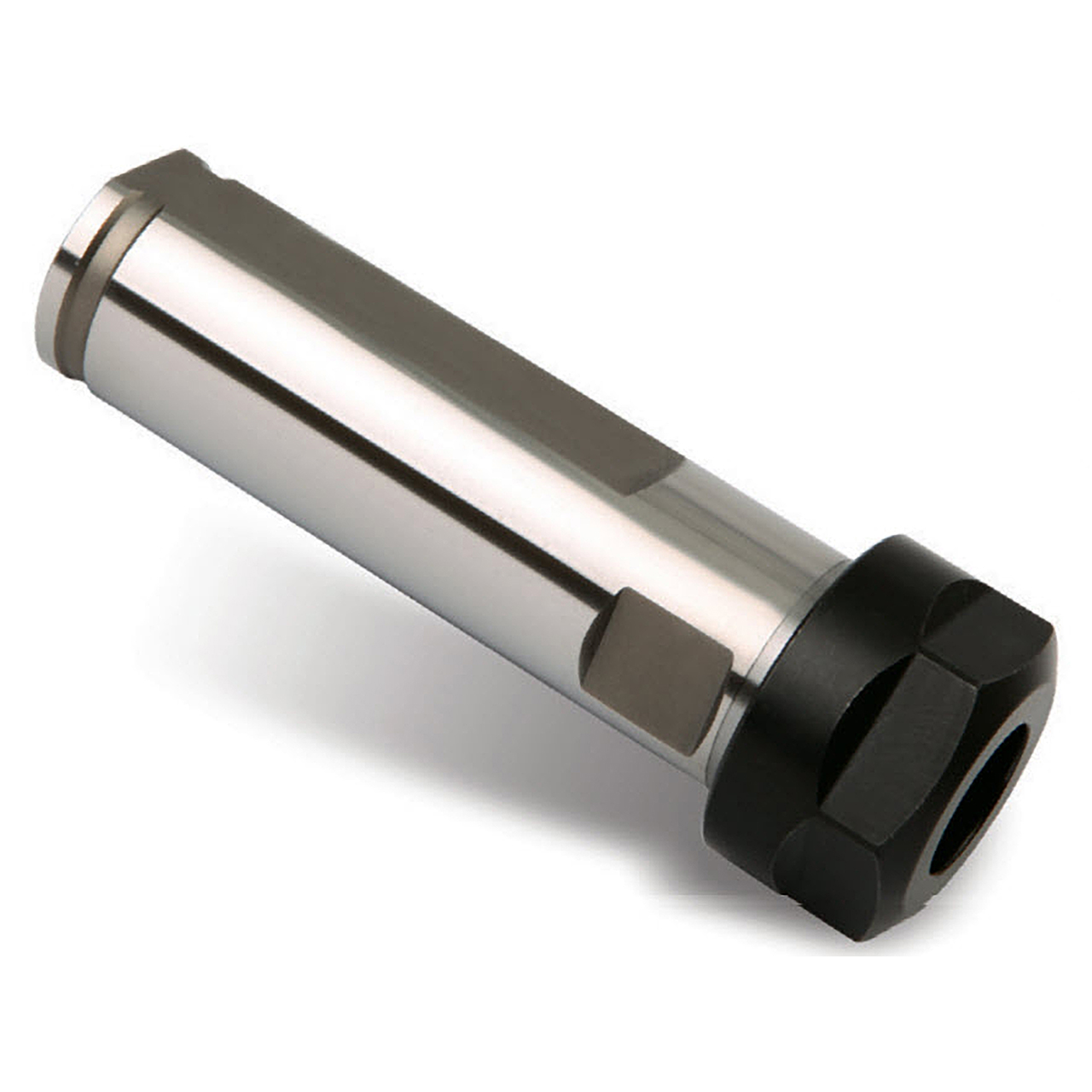

YG1 BN114 | NC Taper 0.039" - 0.511" Range x 1.250" Connection Diameter x 2.756" Length x 1.220" Minimum Functional Length x 2.315" Maximum Functional Length ER20 NC ER Collet Chuck

YG1 BN114 | NC Taper 0.039" - 0.511" Range x 1.250" Connection Diameter x 2.756" Length x 1.220" Minimum Functional Length x 2.315" Maximum Functional Length ER20 NC ER Collet Chuck

SKU: 55008286 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$137.68 $112.90
(You save $24.78)
Shipping: Calculated at Checkout

About This Item


Product Specifications
Manufacturer Part NumberBN114
Taper TypeNC
Clamping range0.039" - 0.511"
Connection Diameter Machine Side (Decimal Inch)1.250"
Connection Diameter Machine Side (mm)31.75mm
Body Diameter 2 (Decimal Inch)1.339"
Body Diameter 2 (mm)34.01mm
Body Length 1 (Decimal Inch)2.756"
Body Length 1 (mm)70.00mm
Functional Length (Decimal Inch)1.161"
Functional Length (mm)29.49mm
Minimum Functional Length (Decimal Inch)1.220"
Maximum Functional Length (Decimal Inch)2.315"
StyleFor CNC Lathe
Taper Accuracy1.25
Collet SeriesER20
Product TypeNC ER Collet Chuck
