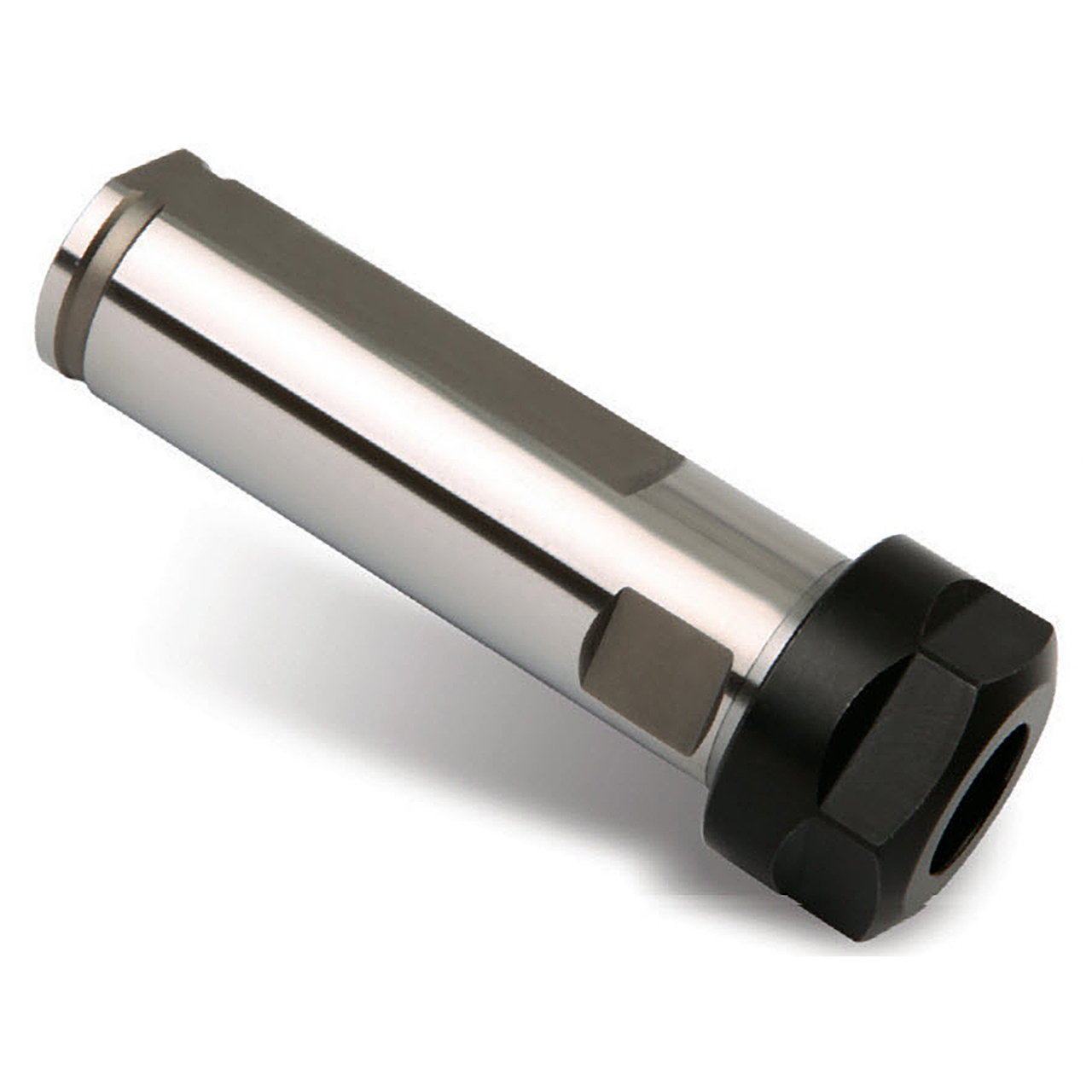

| Manufacturer Part Number | BN115 |
| Taper Type | NC |
| Clamping range | 0.039" - 0.629" |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Body Diameter 2 (Decimal Inch) | 1.654" |
| Body Diameter 2 (mm) | 42.01mm |
| Body Length 1 (Decimal Inch) | 2.756" |
| Body Length 1 (mm) | 70.00mm |
| Functional Length (Decimal Inch) | 1.575" |
| Functional Length (mm) | 40.01mm |
| Minimum Functional Length (Decimal Inch) | 1.339" |
| Maximum Functional Length (Decimal Inch) | 2.335" |
| Style | For CNC Lathe |
| Taper Accuracy | 1.25 |
| Collet Series | ER25 |
| Product Type | NC ER Collet Chuck |
