Product Specifications
| Manufacturer Part Number | BO284 |
| Thread Size | M5 |
| Thread Size (Decimal Inch) | 0.197" |
| Thread Size (mm) | 5.00mm |
| Pitch (mm) | 0.80mm |
| Thread Series | M |
| Pitch Limit | D4 |
| Chamfer Type | Modified Bottoming |
| Chamfer Length | 2P-3P |
| Overall Length (Decimal Inch) | 2.756" |
| Overall Length (mm) | 70.00mm |
| Thread Length (Decimal Inch) | 0.354" |
| Thread Length (mm) | 8.99mm |
| Square Length (Decimal Inch) | 0.250" |
| Square Length (mm) | 6.35mm |
| Shank Diameter (Decimal Inch) | 0.194" |
| Shank Diameter (mm) | 4.93mm |
| Square Size (Decimal Inch) | 0.152" |
| Square Size (mm) | 3.86mm |
| Neck Diameter (Decimal Inch) | 0.152" |
| Neck Diameter (mm) | 3.86mm |
| Neck Length (Decimal Inch) | 0.933" |
| Neck Length (mm) | 23.70mm |
| Shank Type | Square |
| Drill Size (Decimal Inch) | 0.168" |
| Drill Size (mm) | 4.27mm |
| Connection Size (Decimal Inch) | 0.194" x 0.152" |
| Connection Size (mm) | 4.93 x 3.86mm |
| Length / Diameter | 2.5 X D |
| Usable Length (Decimal Inch) | 0.933" |
| Usable Length (mm) | 23.70mm |
| Ring Color | Blue Ring |
| Helix Angle (Degree) | 40 Degree |
| Number of Flutes | 3 |
| Coating | HardSlick |
| Material | HSS-PM |
| Blank Standard | DIN/ANSI |

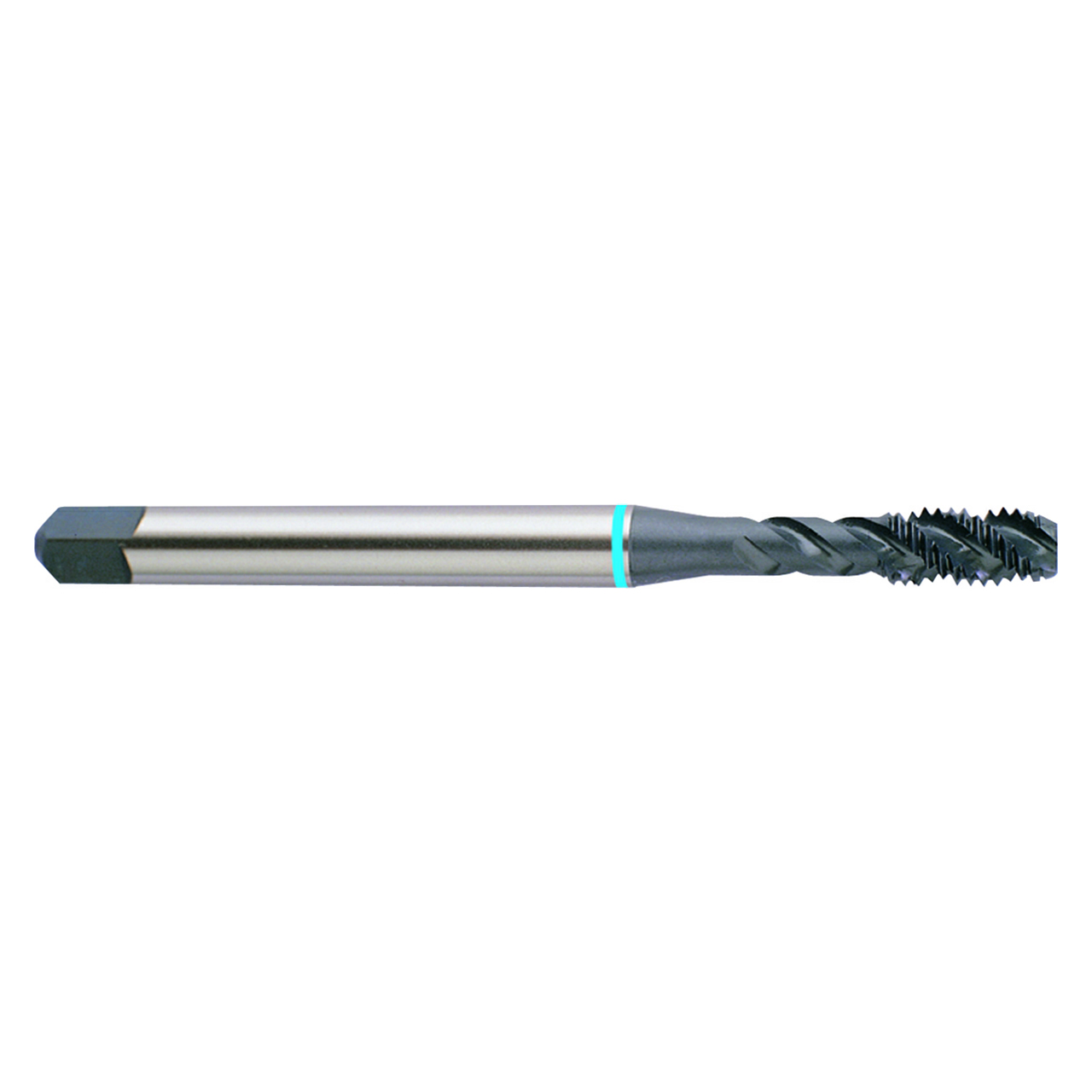

| Product Type | Spiral Flute Tap |
