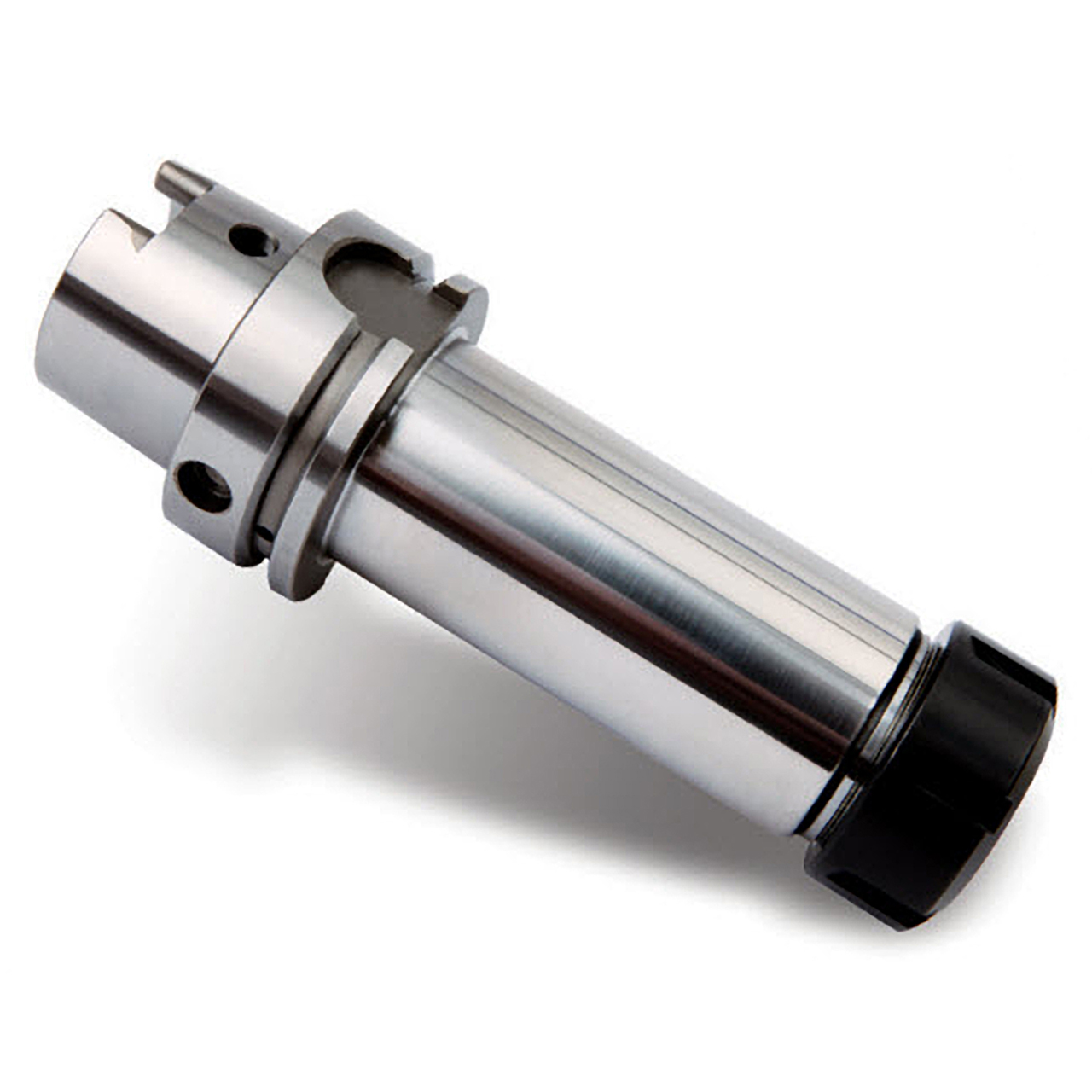

YG1 BQ012 | 63A Taper 0.039" - 0.511" Range x 1.339" Diameter x 3.940" Gage Length x 1.220" Minimum Functional Length x 2.315" Maximum Functional Length ER20 Dual Contact ER Collet Chuck

YG1 BQ012 | 63A Taper 0.039" - 0.511" Range x 1.339" Diameter x 3.940" Gage Length x 1.220" Minimum Functional Length x 2.315" Maximum Functional Length ER20 Dual Contact ER Collet Chuck

SKU: 55008294 Weight: 1.23 LBS Minimum Purchase: 1 unit
UPC:
$261.27 $214.24
(You save $47.03)
Shipping: Calculated at Checkout

About This Item


Product Specifications
Manufacturer Part NumberBQ012
Taper Type63A
Clamping range0.039" - 0.511"
Body Diameter (Decimal Inch)1.339"
Body Diameter (mm)34.01mm
Gage Length (Decimal Inch)3.940"
Gage Length (mm)100.08mm
Minimum Functional Length (Decimal Inch)1.220"
Maximum Functional Length (Decimal Inch)2.315"
StyleHSK63A
G Value2.5
RPM25000
Coolant SystemAD
Collet SeriesER20
Product TypeDual Contact ER Collet Chuck
