| Manufacturer Part Number | BS115 |
| Taper Type | K |
| Clamping range | 0.078" - 0.787" |
| Connection Diameter Machine Side (Decimal Inch) | 1.250" |
| Connection Diameter Machine Side (mm) | 31.75mm |
| Body Diameter 2 (Decimal Inch) | 1.969" |
| Body Diameter 2 (mm) | 50.01mm |
| Gage Length (Decimal Inch) | 3.150" |
| Gage Length (mm) | 80.01mm |
| Functional Length (Decimal Inch) | 1.890" |
| Functional Length (mm) | 48.01mm |
| Minimum Functional Length (Decimal Inch) | 3.150" |
| Style | For Tapping |
| Taper Accuracy | 1.25 |
| Collet Series | ER32 |

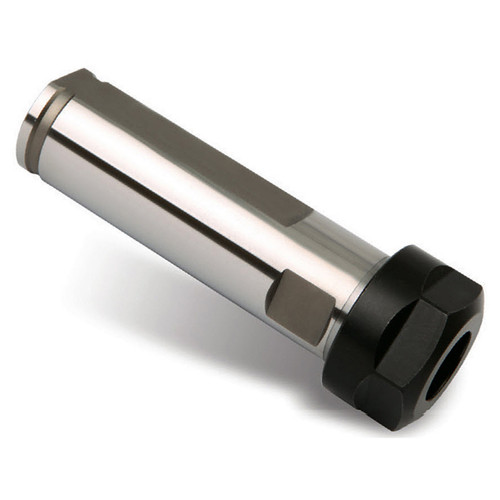

| Product Type | Tension ER Collet Chuck |
