| Manufacturer Part Number | D2148108 |
| Diameter (Inch) | 1/5" |
| Diameter (Decimal Inch) | 0.1990" |
| Diameter (mm) | 5.05mm |
| Shank Diameter (Inch) | 1/5" |
| Shank Diameter (Decimal Inch) | 0.1990" |
| Shank Diameter (mm) | 5.05mm |
| Flute Length (Inch) | 1-3/16" |
| Flute Length (Decimal Inch) | 1.1900" |
| Flute Length (mm) | 30.16mm |
| Overall Length (Inch) | 2-1/4" |
| Overall Length (Decimal Inch) | 2.2500" |
| Overall Length (mm) | 57.15mm |
| Point Length (Decimal Inch) | 0.0412" |
| Point Length (mm) | 1.05mm |
| Wire Size | #8 |
| Number of Flute | 2 |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 20-30 Degree |
| Cutting Direction | Right Hand |
| Material | HSS Co8 |
| Coating | Bright |

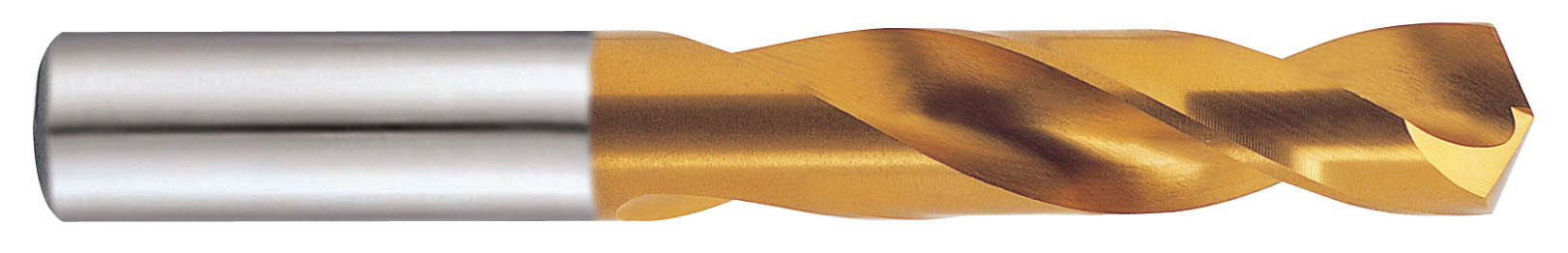

| Product Type | Screw Machine Length Drill Bit |
