| Manufacturer Part Number | D2148157 |
| Diameter (Inch) | 4/93" |
| Diameter (Decimal Inch) | 0.0430" |
| Diameter (mm) | 1.09mm |
| Shank Diameter (Inch) | 4/93" |
| Shank Diameter (Decimal Inch) | 0.0430" |
| Shank Diameter (mm) | 1.09mm |
| Flute Length (Inch) | 1/2" |
| Flute Length (Decimal Inch) | 0.5000" |
| Flute Length (mm) | 12.70mm |
| Overall Length (Inch) | 1-3/8" |
| Overall Length (Decimal Inch) | 1.3750" |
| Overall Length (mm) | 34.93mm |
| Point Length (Decimal Inch) | 0.0089" |
| Point Length (mm) | 0.23mm |
| Wire Size | #57 |
| Number of Flute | 2 |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 20-30 Degree |
| Cutting Direction | Right Hand |
| Material | HSS Co8 |
| Coating | Bright |

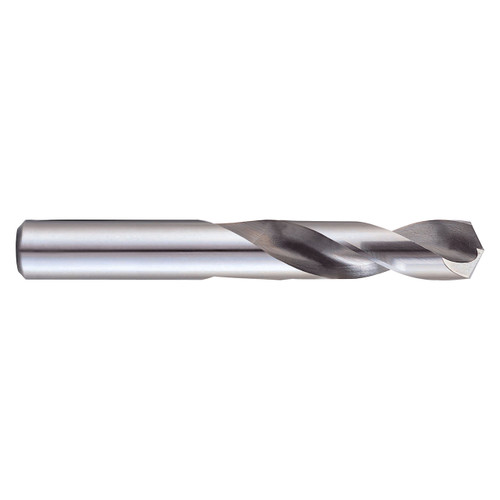

| Product Type | Screw Machine Length Drill Bit |
