| Manufacturer Part Number | D2148159 |
| Size (Wire) | #59 |
| Size (Inch) | 3/73" |
| Size (Decimal Inch) | 0.041" |
| Size (mm) | 1.04mm |
| Shank Diameter (Inch) | 3/73" |
| Shank Diameter (Decimal Inch) | 0.041" |
| Shank Diameter (mm) | 1.04mm |
| Flute Length (Inch) | 1/2" |
| Flute Length (Decimal Inch) | 0.500" |
| Flute Length (mm) | 12.70mm |
| Overall Length (Inch) | 1-3/8" |
| Overall Length (Decimal Inch) | 1.375" |
| Overall Length (mm) | 34.93mm |
| Point Length (Decimal Inch) | 0.008" |
| Point Length (mm) | 0.22mm |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 20-30 Degree |
| Number of Flutes | 2 |
| Series | D2148 |
| Blank Standard | ANSI |
| Coating | Bright |
| Material | HSS |
| Hole Tolerance | ANSI |
| Cutting Direction | Right Hand |

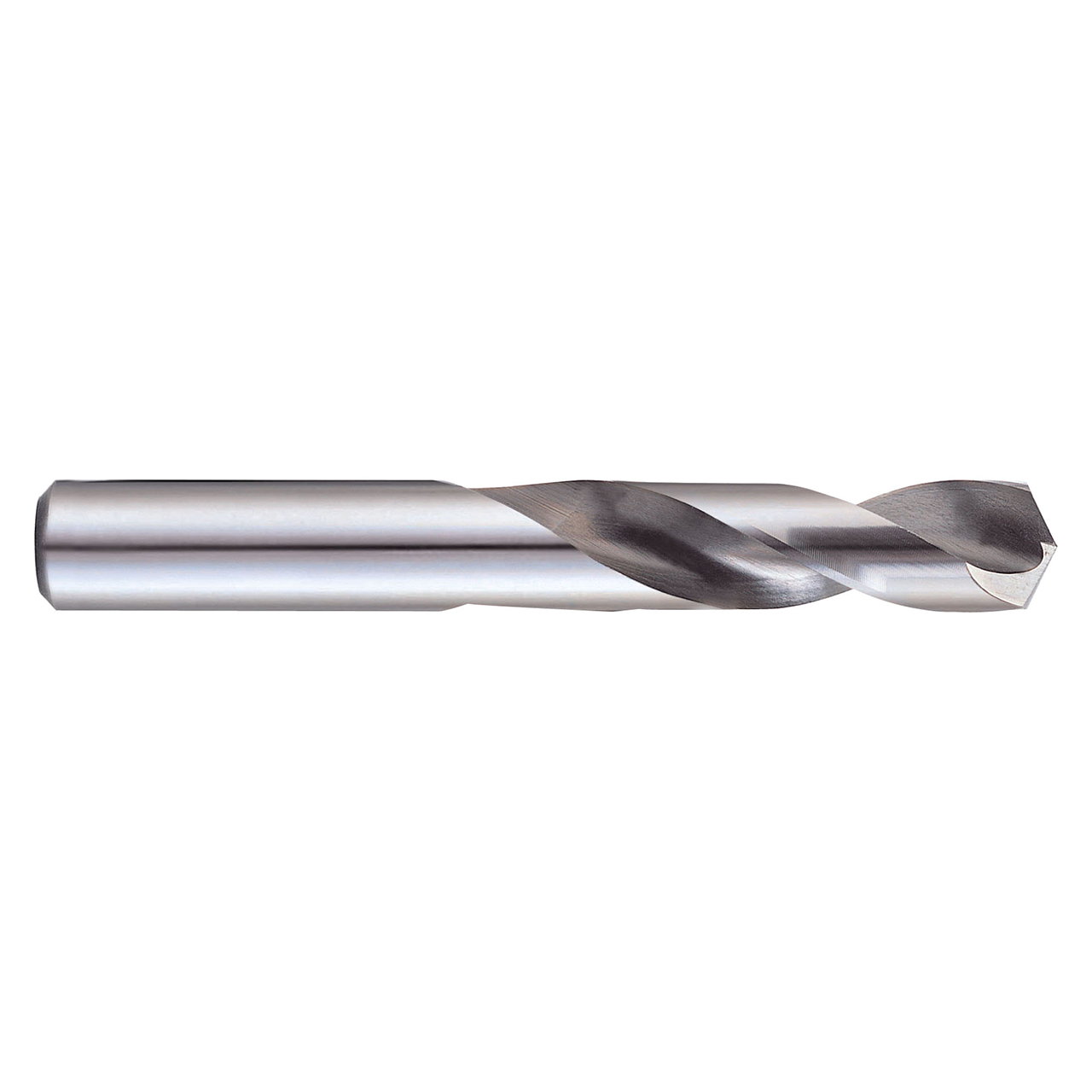

| Product Type | Screw Machine Length Drill Bit |
