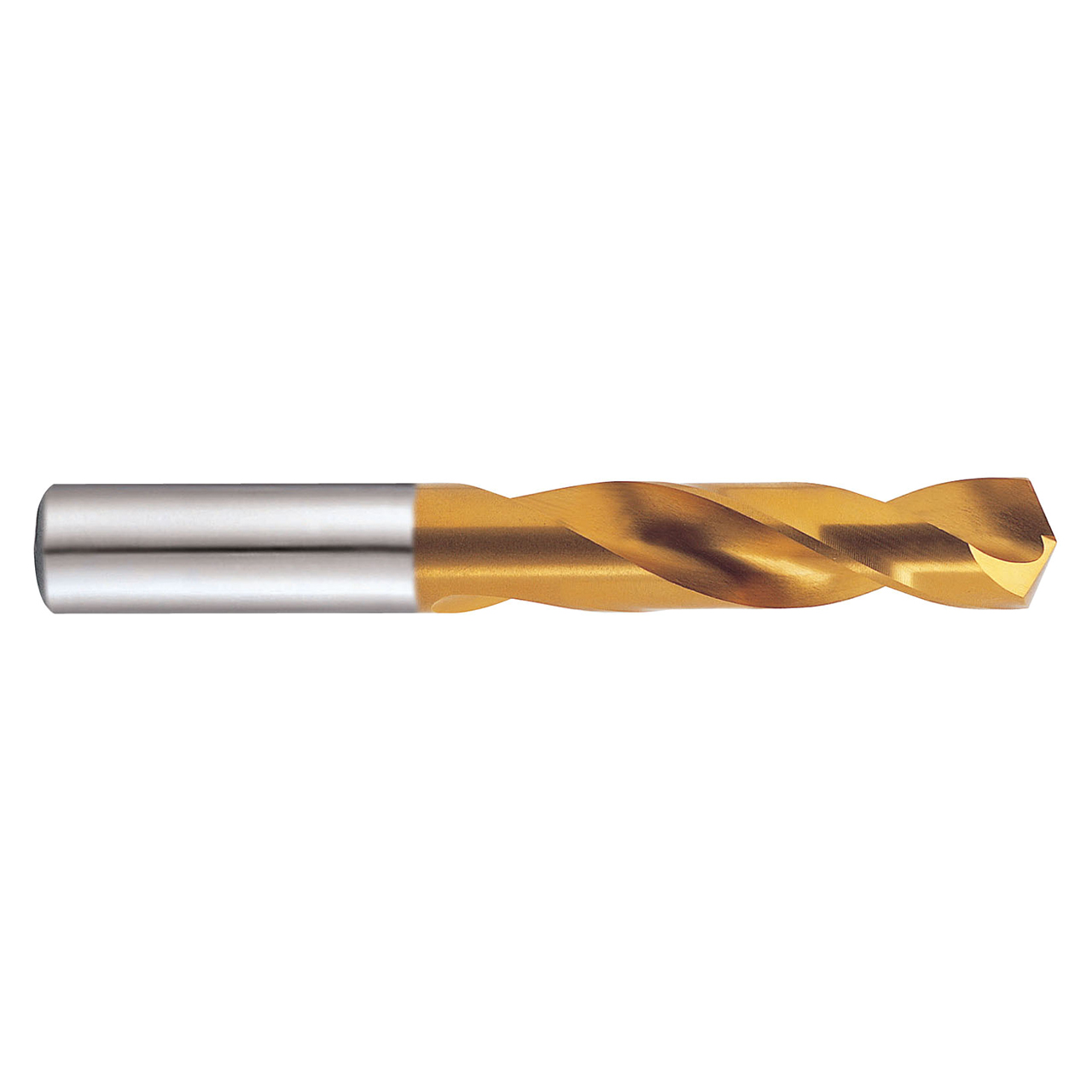

| Manufacturer Part Number | D4107073 |
| Size (Inch) | 25/87" |
| Size (Decimal Inch) | 0.287" |
| Size (mm) | 7.30mm |
| Shank Diameter (Inch) | 25/87" |
| Shank Diameter (Decimal Inch) | 0.287" |
| Shank Diameter (mm) | 7.30mm |
| Flute Length (Inch) | 1-21/62" |
| Flute Length (Decimal Inch) | 1.339" |
| Flute Length (mm) | 34.00mm |
| Overall Length (Inch) | 2-21/23" |
| Overall Length (Decimal Inch) | 2.913" |
| Overall Length (mm) | 74.00mm |
| Point Length (Decimal Inch) | 0.060" |
| Point Length (mm) | 1.51mm |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 33 Degree |
| Number of Flutes | 2 |
| Series | D4107 |
| Blank Standard | DIN 1897 |
| Coating | TiN |
| Material | HSS |
| Hole Tolerance | h8 |
| Cutting Direction | Right Hand |
| Product Type | Screw Machine Length Drill Bit |
