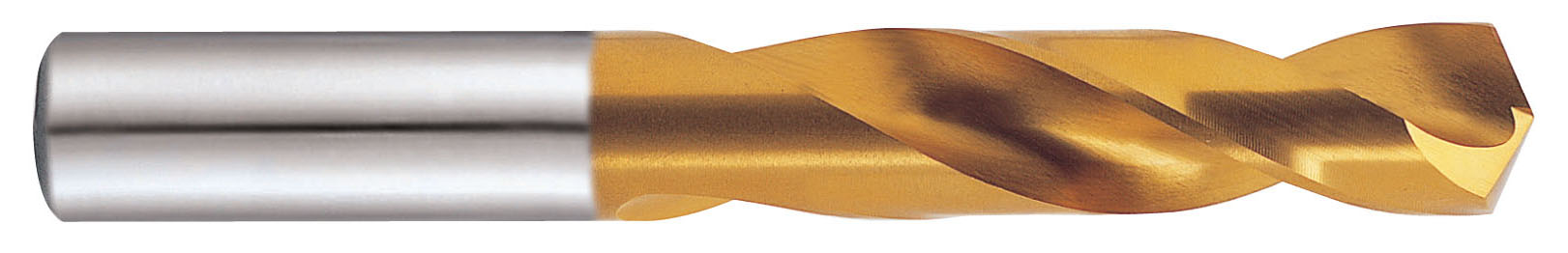

| Manufacturer Part Number | D4146017 |
| Diameter (Inch) | 17/64" |
| Diameter (Decimal Inch) | 0.2656" |
| Diameter (mm) | 6.75mm |
| Shank Diameter (Inch) | 17/64" |
| Shank Diameter (Decimal Inch) | 0.2656" |
| Shank Diameter (mm) | 6.75mm |
| Flute Length (Inch) | 1-7/16" |
| Flute Length (Decimal Inch) | 1.4400" |
| Flute Length (mm) | 36.51mm |
| Overall Length (Inch) | 2-5/8" |
| Overall Length (Decimal Inch) | 2.6250" |
| Overall Length (mm) | 66.68mm |
| Point Length (Decimal Inch) | 0.0550" |
| Point Length (mm) | 1.40mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 20-30 Degree |
| Cutting Direction | Right Hand |
| Material | HSS Co8 |
| Coating | TiN |
| Product Type | Screw Machine Length Drill Bit |
