| Manufacturer Part Number | D4148146 |
| Diameter (Inch) | 3/37" |
| Diameter (Decimal Inch) | 0.0810" |
| Diameter (mm) | 2.06mm |
| Shank Diameter (Inch) | 3/37" |
| Shank Diameter (Decimal Inch) | 0.0810" |
| Shank Diameter (mm) | 2.06mm |
| Flute Length (Inch) | 3/4" |
| Flute Length (Decimal Inch) | 0.7500" |
| Flute Length (mm) | 19.05mm |
| Overall Length (Inch) | 1-3/4" |
| Overall Length (Decimal Inch) | 1.7500" |
| Overall Length (mm) | 44.45mm |
| Point Length (Decimal Inch) | 0.0168" |
| Point Length (mm) | 0.43mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 135 Degree |
| Helix Angle (Degree) | 20-30 Degree |
| Cutting Direction | Right Hand |
| Material | HSS Co8 |
| Coating | TiN |

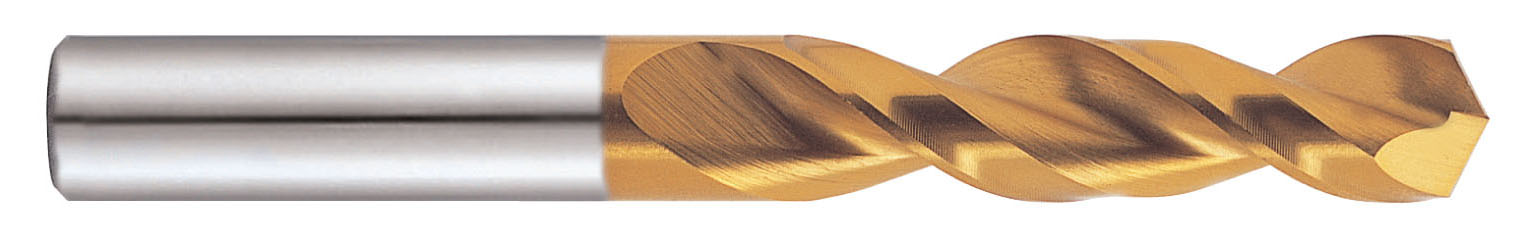

| Product Type | Screw Machine Length Drill Bit |
