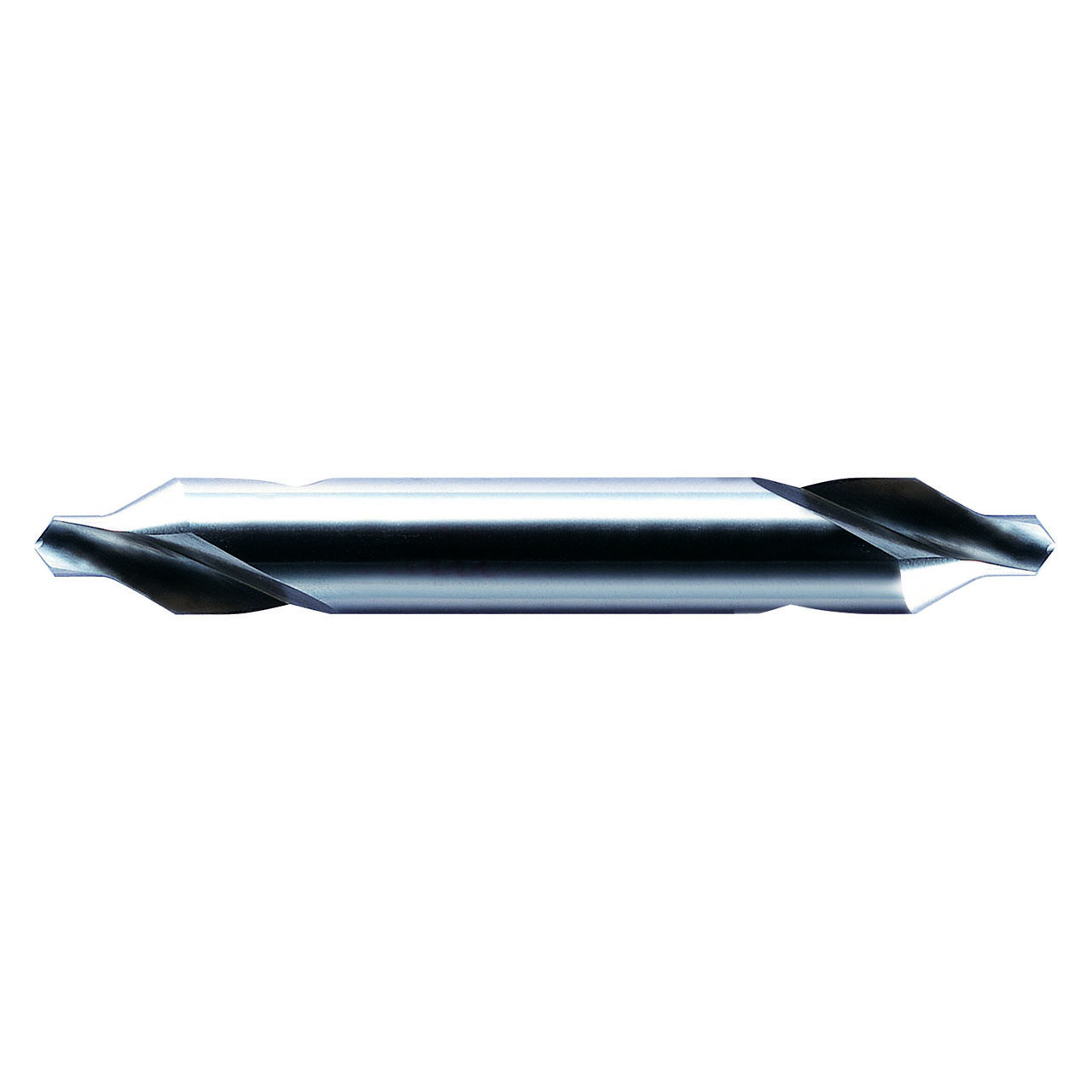

Product Specifications
| EDP Number | D5331028 |
| Center Drill Size | #5 |
| Pilot Length (Decimal Inch) | 0.1875" |
| Pilot Length (Inch) | 3/16" |
| Pilot Length (mm) | 4.76mm |
| Pilot Diameter (Decimal Inch) | 0.1875" |
| Pilot Diameter (Inch) | 3/16" |
| Pilot Diameter (mm) | 4.76mm |
| Shank Diameter (Decimal Inch) | 0.4375" |
| Shank Diameter (Inch) | 7/16" |
| Shank Diameter (mm) | 11.11mm |
| Overall Length (Decimal Inch) | 2.7500" |
| Overall Length (Inch) | 2-3/4" |
| Overall Length (mm) | 69.85mm |
| Point Length (Decimal Inch) | 0.0541" |
| Point Length (mm) | 1.37mm |
| Point Angle | 120 Degree |
| Center Angle (Degree) | 60 Degree |
| Number of Flutes | 2 |
| Series | D5331 |
| Shank Tolerance | h8 |
| Coolant Through | No |
| Coating | Bright |
| Material | Solid Carbide |
| Hole Tolerance | k12 |
| Application | P,K |
| Cutting Direction | Right Hand |
| Product Type | Combination Drill & Countersink |
