| Manufacturer Part Number | DB510199 |
| Cutting Diameter (Inch) | 76/97" |
| Cutting Diameter (Decimal Inch) | 0.783" |
| Cutting Diameter (mm) | 19.90mm |
| Shank Diameter (Inch) | 37/47" |
| Shank Diameter (Decimal Inch) | 0.787" |
| Shank Diameter (mm) | 20.00mm |
| Flute Length (Inch) | 3-83/85" |
| Flute Length (Decimal Inch) | 3.976" |
| Flute Length (mm) | 101.00mm |
| Overall Length (Inch) | 6-2/85" |
| Overall Length (Decimal Inch) | 6.024" |
| Overall Length (mm) | 153.00mm |
| Number of Flutes | 2 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Shank Tolerance | h6 |
| Cutting Direction | Right Hand |
| Coolant Pressure | 20 Bar |
| Coating | TiAlN |
| Material | Carbide |

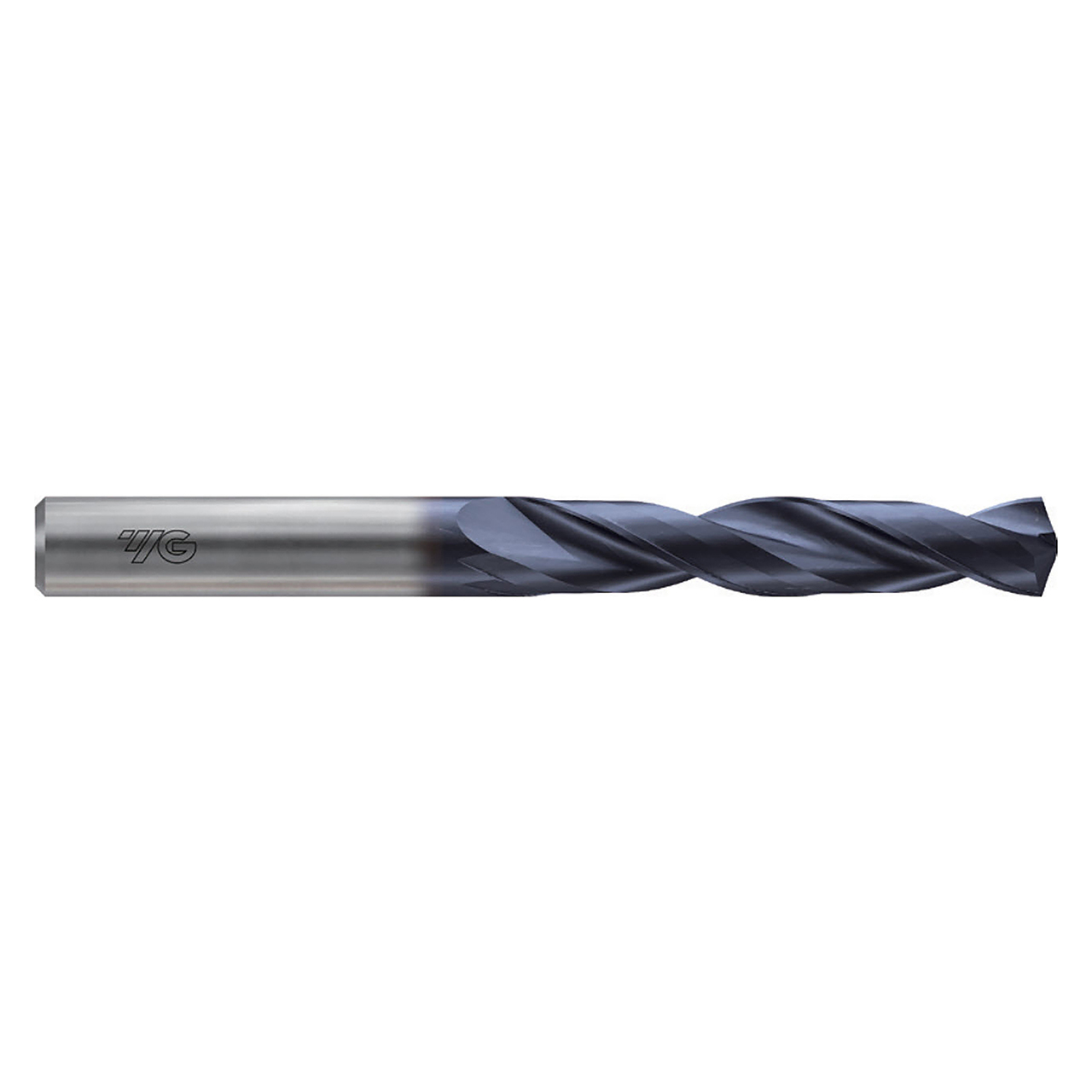

| Product Type | Dream Drill |
