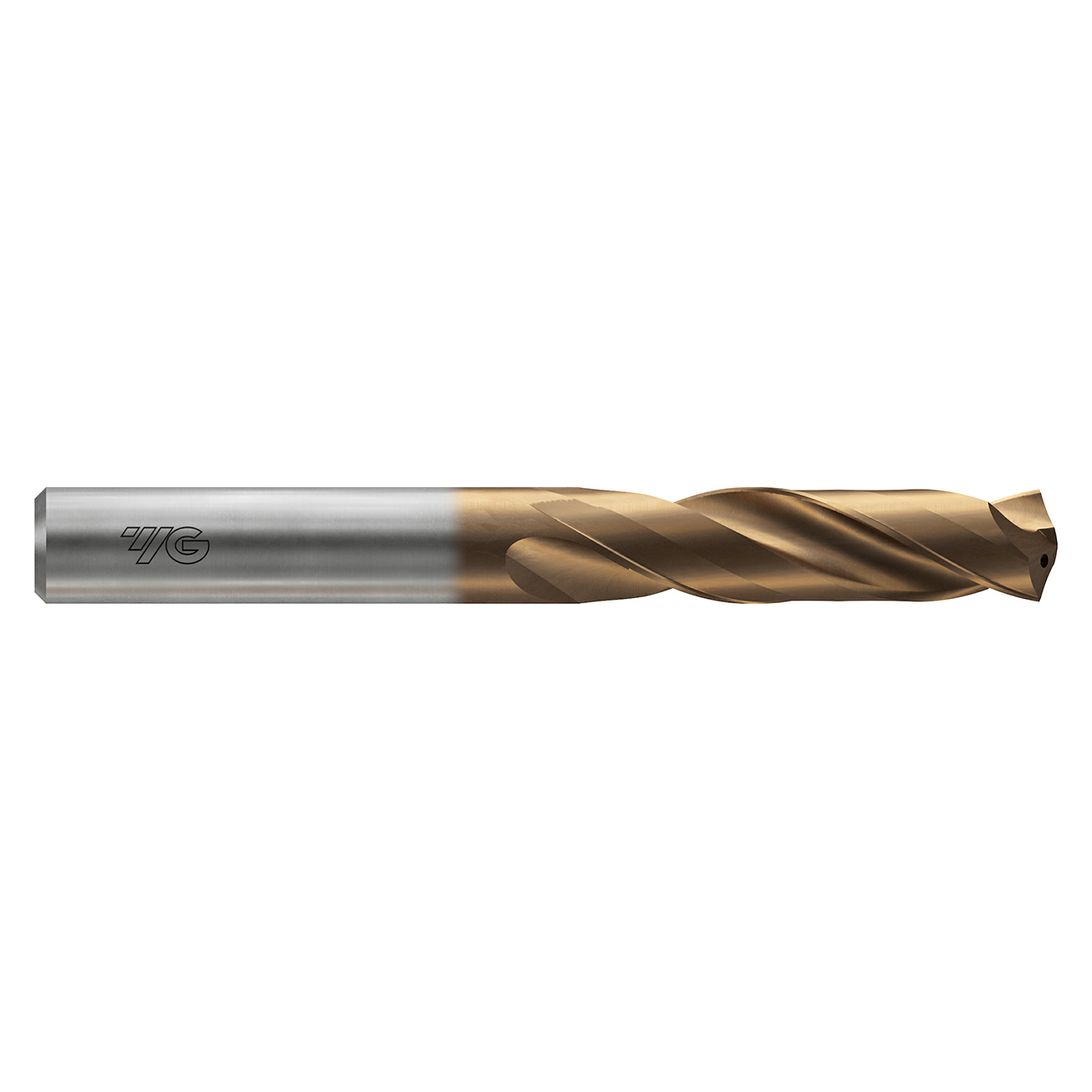

YG1 DGN506025F | 0.3906" Diameter x 0.3937" Shank x 3.5039" OAL 3XD Length 140 Degree Point Angle 2 Flute Z-Coated Carbide Coolant Fed Drill

$244.50 $166.26
(You save $78.24)
Brand:
YG1
Drill Size (Inch):
25/64"
Drill Size (Decimal Inch):
0.3906"
Drill Size (mm):
9.92mm
Finish/Coating:
Z-Coated
Material:
Carbide
Coolant Through:
Yes
interval quantity:
1
SKU:
10215871
UPC:
Weight:
0.16 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

Product Specifications
EDP NumberDGN506025F
Diameter (Decimal Inch)0.3906"
Diameter (Inch)25/64"
Diameter (mm)9.92mm
Shank Diameter (Decimal Inch)0.3937"
Shank Diameter (Inch)37/94"
Shank Diameter (mm)10.00mm
Flute Length (Decimal Inch)1.8504"
Flute Length (Inch)1-17/20"
Flute Length (mm)47.00mm
Overall Length (Decimal Inch)3.5039"
Overall Length (Inch)3-1/2"
Overall Length (mm)89.00mm
Point Length (Decimal Inch)0.0711"
Point Length (mm)1.81mm
SeriesDGN506
Number of Flutes2
Shank Toleranceh6
Hole Tolerancem7
Point Angle (Degree)140 Degree
Length/Diameter3XD
CoatingZ-Coated
MaterialCarbide
Coolant Pressure20 Bar
Blank StandardDIN6537
Coolant ThroughYes
ApplicationP, K
Cutting DirectionRight Hand
TypeDream Drill Pro with Coolant Holes (3xD Short)
Product TypeCoolant Fed Drill
