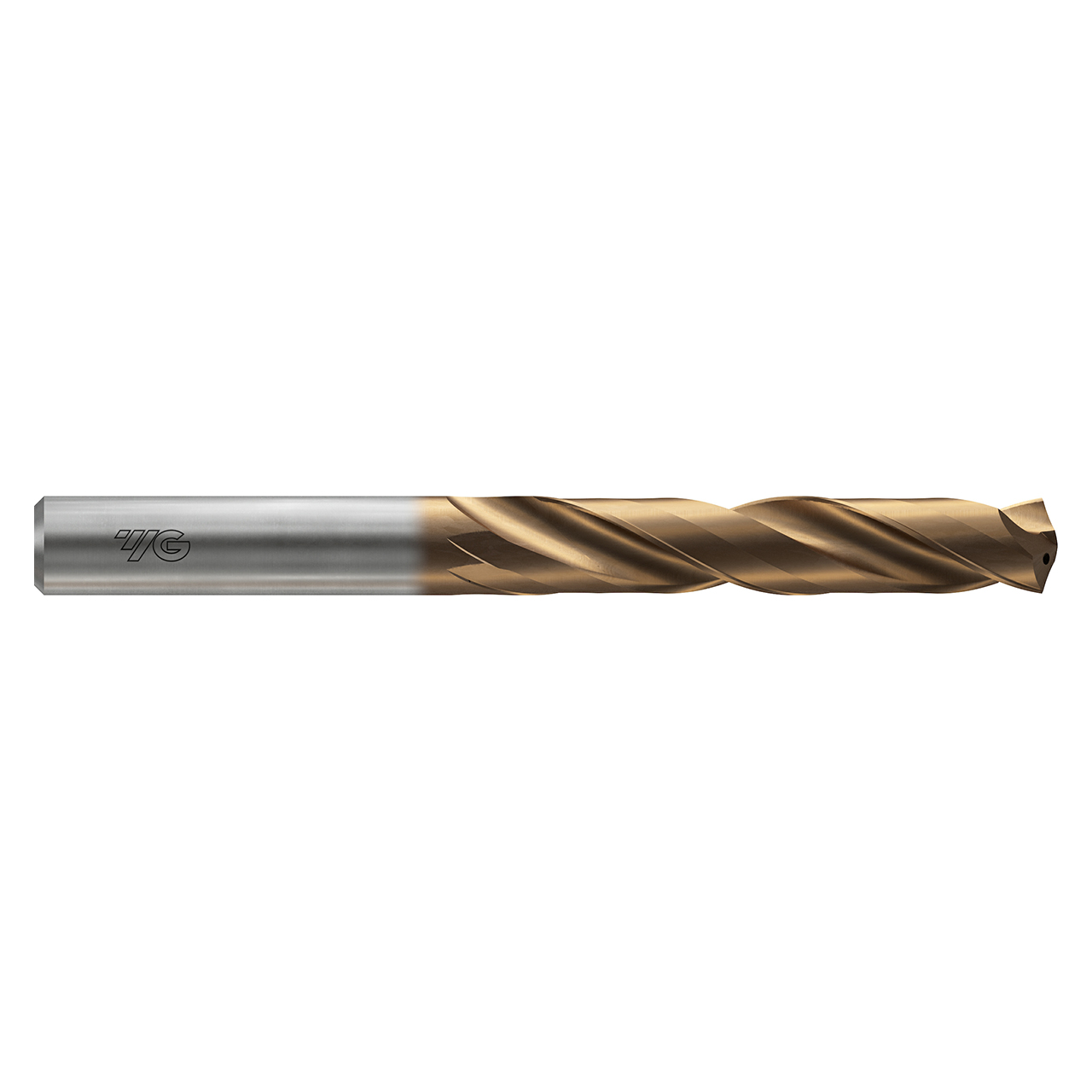

| Manufacturer Part Number | DGN508125 |
| Diameter (Decimal Inch) | 0.4921" |
| Diameter (mm) | 12.50mm |
| Shank Diameter (Decimal Inch) | 0.5512" |
| Shank Diameter (mm) | 14.00mm |
| Flute Length (Decimal Inch) | 3.0315" |
| Flute Length (Inch) | 34761" |
| Flute Length (mm) | 77.00mm |
| Overall Length (Decimal Inch) | 4.8819" |
| Overall Length (mm) | 124.00mm |
| Point Length (Decimal Inch) | 0.0896" |
| Point Length (mm) | 2.27mm |
| Series | DGN508 |
| Number of Flutes | 2 |
| Shank Tolerance | h6 |
| Hole Tolerance | m7 |
| Point Angle (Degree) | 140 Degree |
| Length/Diameter | 5XD |
| Coating | Z-Coated |
| Material | Carbide |
| Coolant Pressure | 20 Bar |
| Blank Standard | DIN6537 |
| Coolant Through | Yes |
| Application | P, K |
| Cutting Direction | Right Hand |
| Type | Dream Drill Pro with Coolant Holes (5XD Long) |
| Product Type | Coolant Fed Drill |
