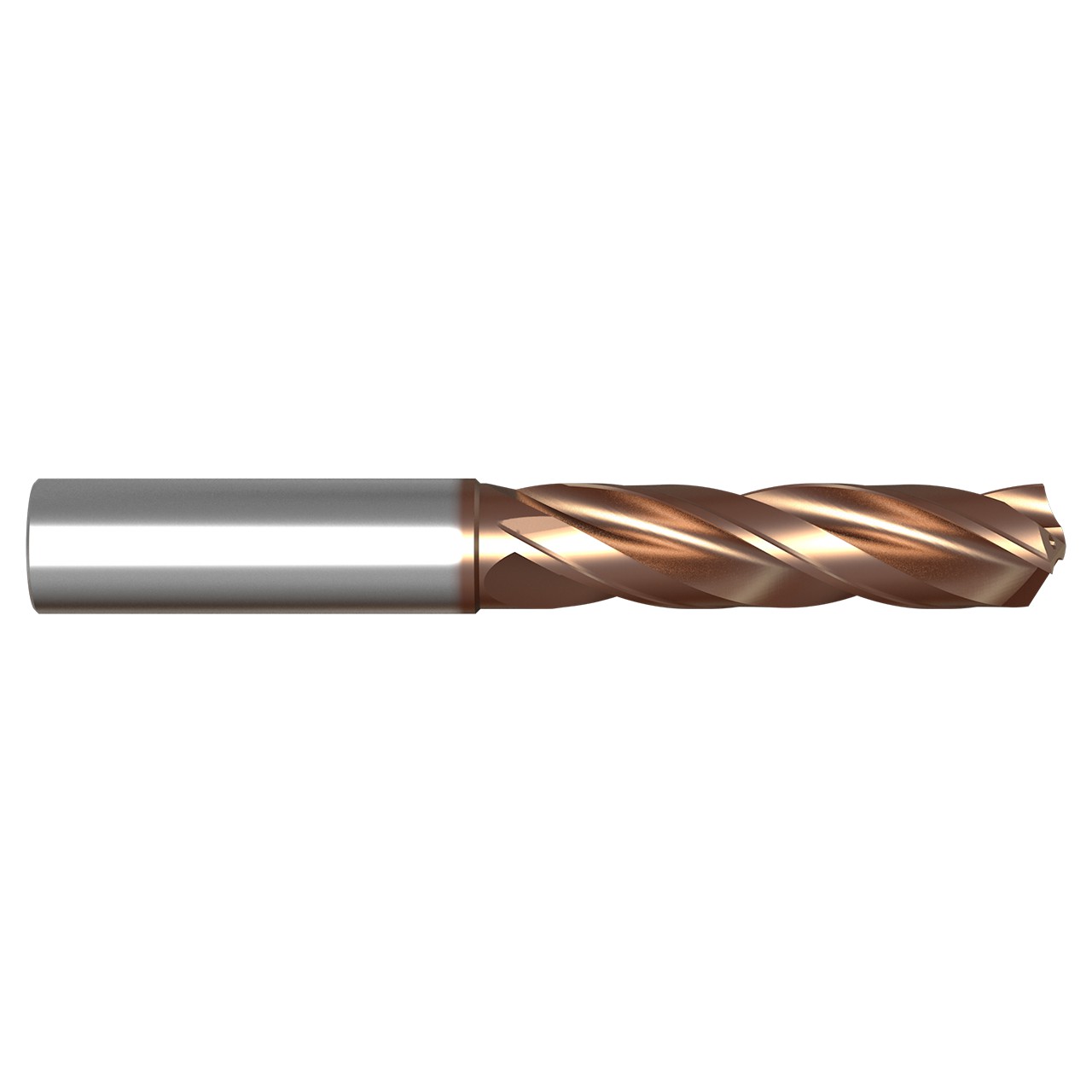

YG1 DGR496040 | 0.6250" Diameter x 0.6250" Shank x 4.5276" OAL 3 Flute H-Coated Carbide Screw Machine Length Drill Bit

$387.45 $261.53
(You save $125.92)
Brand:
YG1
Flute Length (Inch):
2-52/93"
Flute Length (Decimal Inch):
2.5591"
Flute Length (mm):
65.00mm
Material:
Carbide
Finish/Coating:
H-Coated
Cutting Direction:
Right
Coolant Through:
Yes
interval quantity:
1
SKU:
10028524
UPC:
Weight:
0.52 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping

Product Specifications
Manufacturer Part NumberDGR496040
Diameter (Inch)5/8"
Diameter (Decimal Inch)0.6250"
Diameter (mm)15.88mm
Shank Diameter (Inch)5/8"
Shank Diameter (Decimal Inch)0.6250"
Shank Diameter (mm)15.88mm
Flute Length (Inch)2-52/93"
Flute Length (Decimal Inch)2.5591"
Flute Length (mm)65.00mm
Overall Length (Inch)4-48/91"
Overall Length (Decimal Inch)4.5276"
Overall Length (mm)115.00mm
Point Length (Decimal Inch)0.1137"
Point Length (mm)2.89mm
Number of Flutes3
SeriesDGR496
Point Angle140 Degree
Helix Angle30 Degree
Length/Diameter3
Shank Toleranceh6
Coolant ThroughYes
Coolant Pressure20 Bar
Blank StandardDIN6537
CoatingH-Coated
MaterialCarbide
Hole Tolerancem7
TypeHigh Feed with Coolant Holes (3XD)
ApplicationP, K
Cutting DirectionRight
