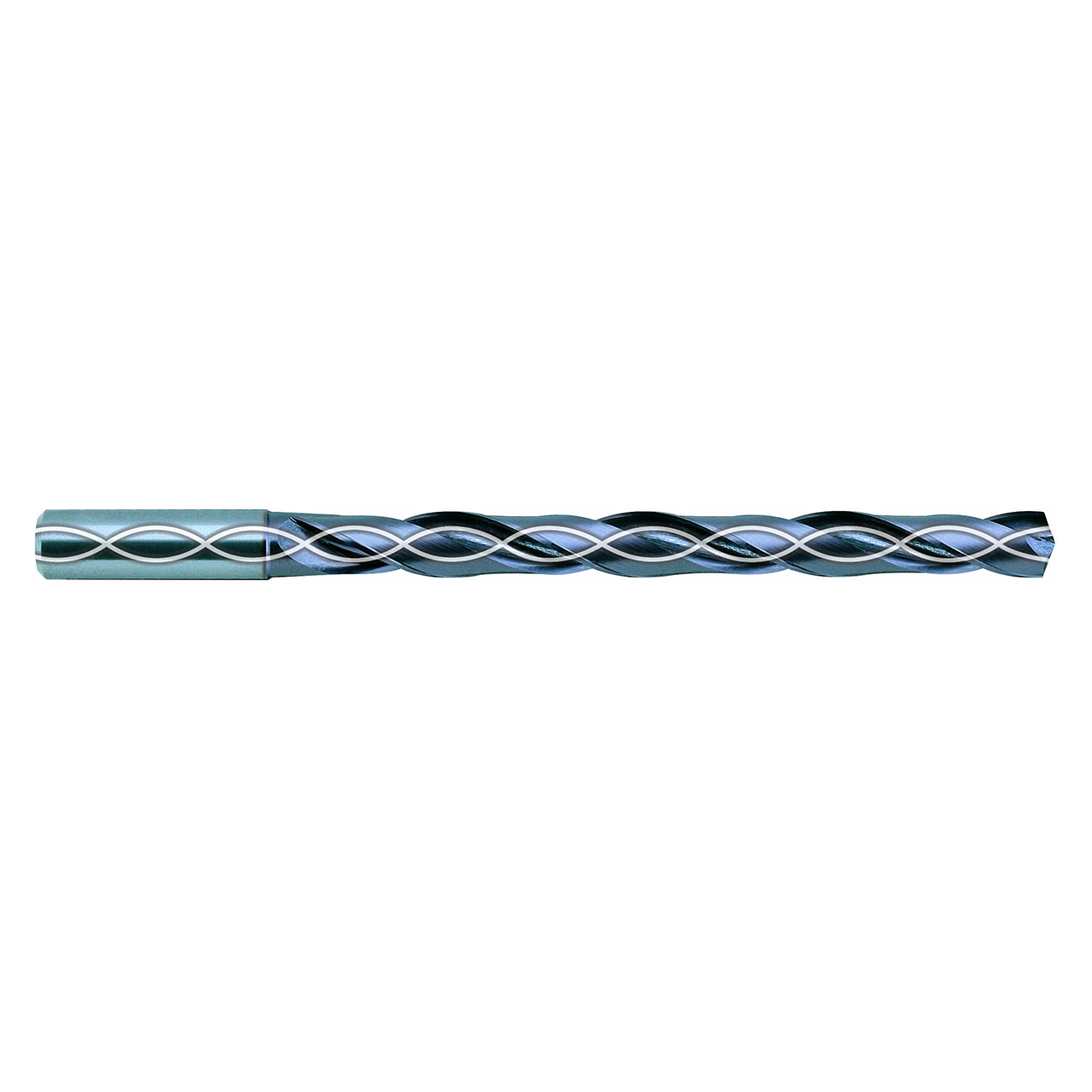

YG1 DH453064 | 0.2520" Diameter x 0.3150" Shank x 4.4882" OAL 2 Flute TiAIN Coated Carbide Dream Drill Bit

$132.13
Brand:
YG1
Drill Bit Size (Inch):
0.2520"
Drill Bit Size (Decimal Inch):
1/4"
Drill Bit Size (mm):
6.40mm
Drill Point Angle:
140 Degree
Flute Length (Inch):
2.9921"
Flute Length (Decimal Inch):
3"
Flute Length (mm):
76.00mm
Overall Length (Inch):
4.4882"
Overall Length (Decimal Inch):
4-21/43"
Overall Length (mm):
114.00mm
Material:
Carbide
Finish/Coating:
TiAIN
Cutting Direction:
Right
SKU:
10030158
Weight:
0.12 LBS
Shipping:
Free Shipping

Product Specifications
Diameter (Decimal Inch)DH453064
Diameter (Decimal Inch)0.2520"
Diameter (Inch)1/4"
Diameter (mm)6.40mm
Shank Diameter (Decimal Inch)0.3150"
Shank Diameter (Inch)23/73"
Shank Diameter (mm)8.00mm
Flute Length (Decimal Inch)2.9921"
Flute Length (Inch)3"
Flute Length (mm)76.00mm
Overall Length (Decimal Inch)4.4882"
Overall Length (Inch)4-21/43"
Overall Length (mm)114.00mm
Point Length (Decimal Inch)0.0459"
Point Length (mm)1.16mm
Point Angle140 Degree
Helix Angle30 Degree
Length/Diameter8 X D
Shank Toleranceh6
Coolant ThroughYes
Number of Flutes2
Coolant Pressure20 Bar
Blank StandardDIN 6537
CoatingTiAIN
MaterialCarbide
Hole Tolerancem7
ApplicationPM
Cutting DirectionRight
Product TypeDream Drill Bit
