Product Specifications
| Manufacturer Part Number | DH500046 |
| Diameter (Decimal Inch) | 0.1811" |
| Diameter (mm) | 4.60mm |
| Shank Diameter (Decimal Inch) | 0.2362" |
| Shank Diameter (mm) | 6.00mm |
| Flute Length (Decimal Inch) | 1.1024" |
| Flute Length (mm) | 28.00mm |
| Overall Length (Decimal Inch) | 2.6772" |
| Overall Length (mm) | 68.00mm |
| Point Length (Decimal Inch) | 0.0330" |
| Point Length (mm) | 0.84mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 15 Degree |
| Cutting Direction | Right Hand |
| Shank Tolerance | h6 |
| Hole Tolerance | h7 |
| Coolant Thru | Yes |
| Material | Carbide |
| Coating | TiAlN |

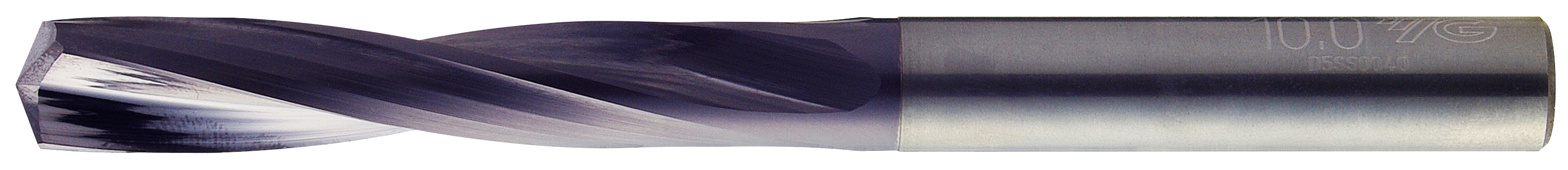

| Product Type | Coolant Fed Drill |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Overall Length (Decimal Inch):
2.6772"
Overall Length (mm):
68.00mm
Finish/Coating:
TiAlN
Material:
Carbide
interval quantity:
1
