| Manufacturer Part Number | DH510091 |
| Diameter (Decimal Inch) | 0.3583" |
| Diameter (mm) | 9.10mm |
| Shank Diameter (Decimal Inch) | 0.3937" |
| Shank Diameter (mm) | 10.00mm |
| Flute Length (Decimal Inch) | 4.8819" |
| Flute Length (mm) | 124.00mm |
| Overall Length (Decimal Inch) | 7.1654" |
| Overall Length (mm) | 182.00mm |
| Point Length (Decimal Inch) | 0.0652" |
| Point Length (mm) | 1.66mm |
| Number of Flutes | 2 |
| Series | DH510 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Length/Diameter | 10xD |
| Shank Tolerance | h6 |
| Hole Tolerance | h7 |
| Coating | TiAlN |
| Material | Carbide |
| Coolant Pressure | 20 Bar |
| Coolant Through | Yes |
| Application | P |
| Cutting Direction | Right |

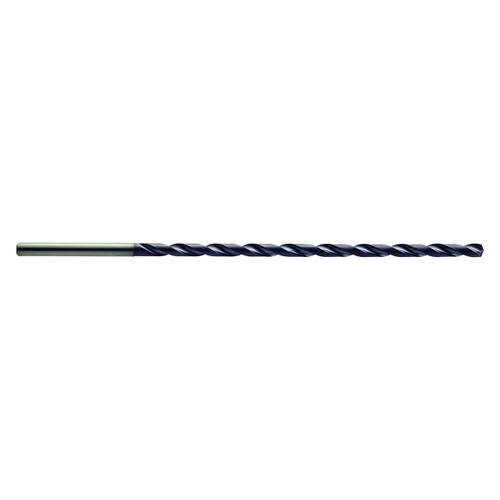

| Product Type | MQL Dream Drill |
