| Manufacturer Part Number | DHM30006L |
| Diameter (Decimal Inch) | 0.2570" |
| Diameter (mm) | 6.53mm |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (mm) | 8.00mm |
| Flute Length (Decimal Inch) | 9.1339" |
| Flute Length (mm) | 232.00mm |
| Overall Length (Decimal Inch) | 10.7087" |
| Overall Length (mm) | 272.00mm |
| Point Length (Decimal Inch) | 0.0468" |
| Point Length (mm) | 1.19mm |
| Letter Size | F |
| Number of Flutes | 2 |
| Series | DHM30 |
| Point Angle (Degree) | 140 Degree |
| Helix Angle (Degree) | 30 Degree |
| Length/Diameter | 30xD |
| Shank Tolerance | h6 |
| Hole Tolerance | h7 |
| Coating | TiAlN |
| Material | Carbide |
| Coolant Pressure | 45 Bar |
| Coolant Through | Yes |
| Application | P |
| Cutting Direction | Right |

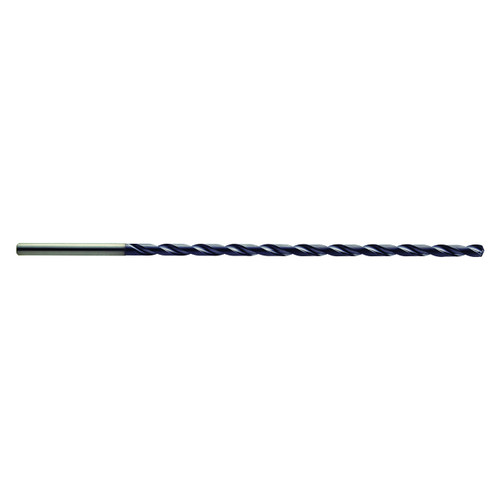

| Product Type | MQL Dream Drill |
