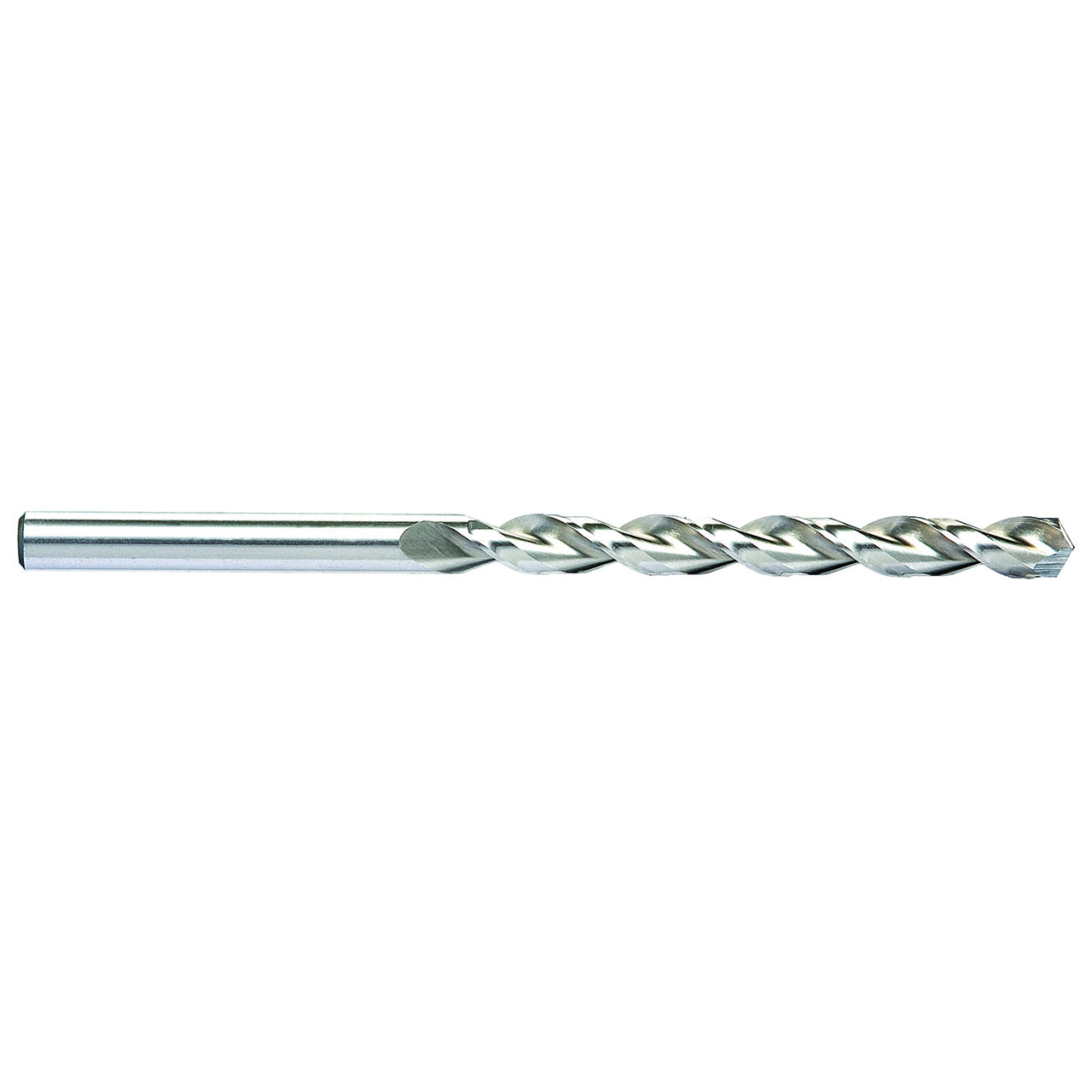

Product Specifications
| Manufacturer Part Number | DL517009 |
| Diameter (Inch) | 9/64" |
| Diameter (Decimal Inch) | 0.1406" |
| Diameter (mm) | 3.57mm |
| Shank Diameter (Inch) | 9/64" |
| Shank Diameter (Decimal Inch) | 0.1406" |
| Shank Diameter (mm) | 3.57mm |
| Flute Length (Inch) | 3" |
| Flute Length (Decimal Inch) | 3.0000" |
| Flute Length (mm) | 76.20mm |
| Overall Length (Inch) | 5-3/8" |
| Overall Length (Decimal Inch) | 5.3750" |
| Overall Length (mm) | 136.53mm |
| Point Length (Decimal Inch) | 0.0328" |
| Point Length (mm) | 0.83mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | Bright |
| Product Type | Taper Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Flute Length (Inch):
3"
Flute Length (Decimal Inch):
3.0000"
Flute Length (mm):
76.20mm
Overall Length (Inch):
5-3/8"
Overall Length (Decimal Inch):
5.3750"
Overall Length (mm):
136.53mm
Material:
HSS-E
Finish/Coating:
Bright
