Product Specifications
| Manufacturer Part Number | DL517027 |
| Diameter (Inch) | 27/64" |
| Diameter (Decimal Inch) | 0.4219" |
| Diameter (mm) | 10.72mm |
| Shank Diameter (Inch) | 27/64" |
| Shank Diameter (Decimal Inch) | 0.4219" |
| Shank Diameter (mm) | 10.72mm |
| Flute Length (Inch) | 4-5/8" |
| Flute Length (Decimal Inch) | 4.6300" |
| Flute Length (mm) | 117.48mm |
| Overall Length (Inch) | 7-1/4" |
| Overall Length (Decimal Inch) | 7.2500" |
| Overall Length (mm) | 184.15mm |
| Point Length (Decimal Inch) | 0.0984" |
| Point Length (mm) | 2.50mm |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | Bright |

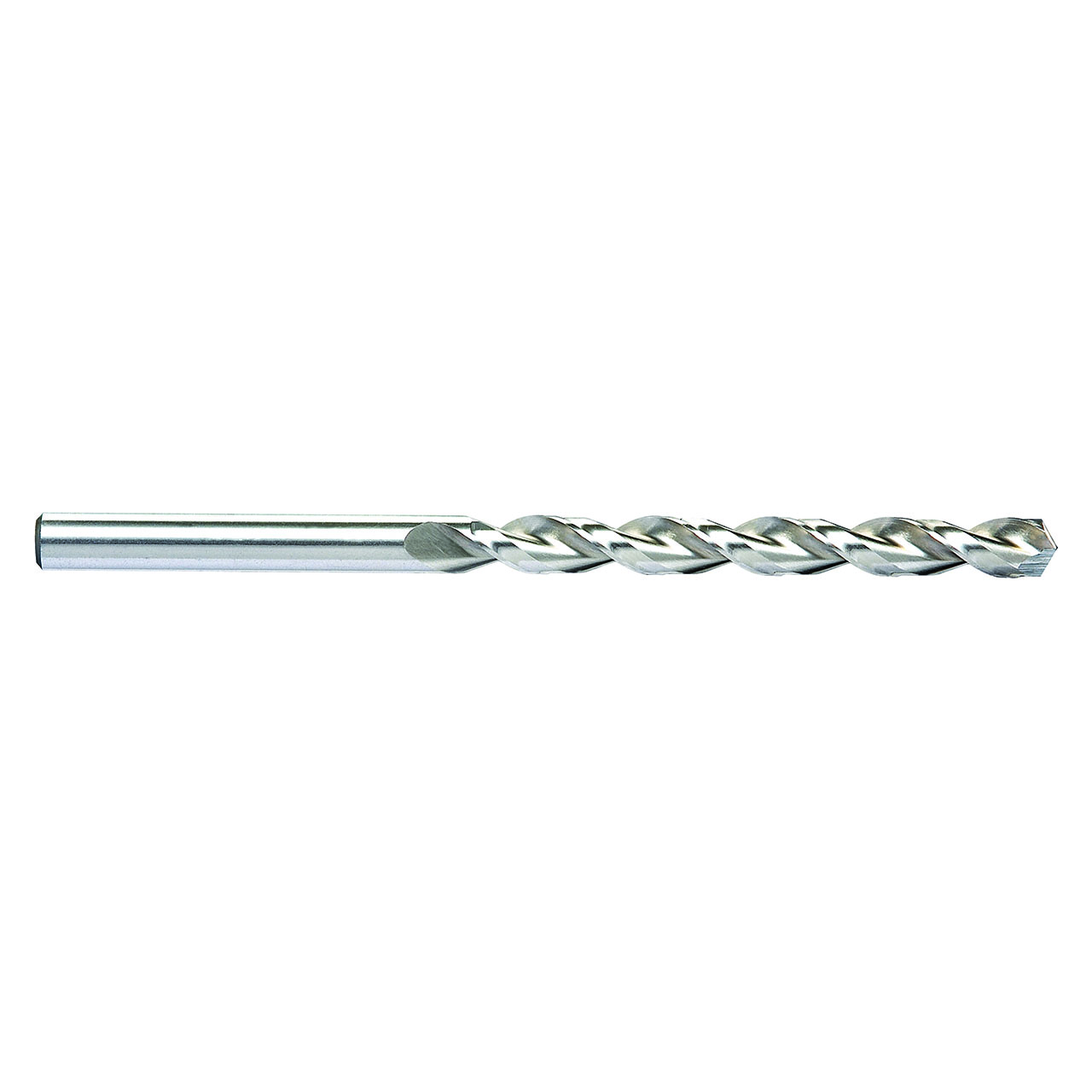

| Product Type | Taper Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Flute Length (Inch):
4-5/8"
Flute Length (Decimal Inch):
4.6300"
Flute Length (mm):
117.48mm
Overall Length (Inch):
7-1/4"
Overall Length (Decimal Inch):
7.2500"
Overall Length (mm):
184.15mm
Material:
HSS-E
Finish/Coating:
Bright
interval quantity:
1
