| Manufacturer Part Number | DL601017 |
| Diameter (Decimal Inch) | 0.2656" |
| Diameter (Inch) | 17/64" |
| Diameter (mm) | 6.75mm |
| Shank Diameter (Decimal Inch) | 0.2656" |
| Shank Diameter (Inch) | 17/64" |
| Shank Diameter (mm) | 6.75mm |
| Overall Length (Decimal Inch) | 6.0000" |
| Overall Length (Inch) | 6" |
| Overall Length (mm) | 152.40mm |
| Flute Length (Decimal Inch) | 2.8750" |
| Flute Length (Inch) | 2-7/8" |
| Flute Length (mm) | 73.03mm |
| Point Length (Decimal Inch) | 0.0550" |
| Point Length (mm) | 1.40mm |
| Point Angle (Degree) | 135 Degree |
| 30 Degree | 30 Degree |
| Number of Flutes | 2 |
| Coating | Bright |
| Material | HSS Co5 |
| Application | P |
| Cutting Direction | Right |

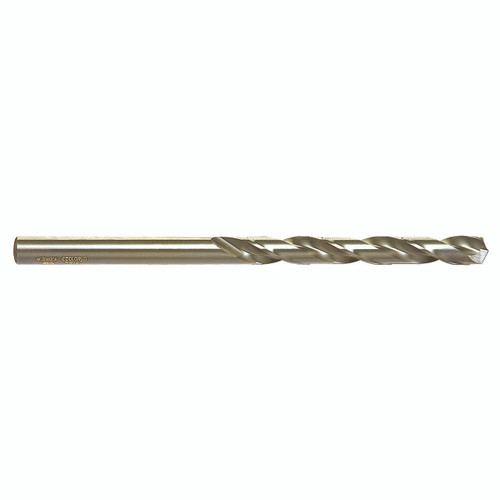

| Product Type | Aircraft Extension Drill |
