| Manufacturer Part Number | DN515237 |
| Diameter (Inch) | 5/48" |
| Diameter (Decimal Inch) | 0.1040" |
| Diameter (mm) | 2.64mm |
| Shank Diameter (Inch) | 5/48" |
| Shank Diameter (Decimal Inch) | 0.1040" |
| Shank Diameter (mm) | 2.64mm |
| Flute Length (Inch) | 13/16" |
| Flute Length (Decimal Inch) | 0.8100" |
| Flute Length (mm) | 20.64mm |
| Overall Length (Inch) | 1-13/16" |
| Overall Length (Decimal Inch) | 1.8125" |
| Overall Length (mm) | 46.04mm |
| Point Length (Decimal Inch) | 0.0242" |
| Point Length (mm) | 0.62mm |
| Wire Size | #37 |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | TiN |

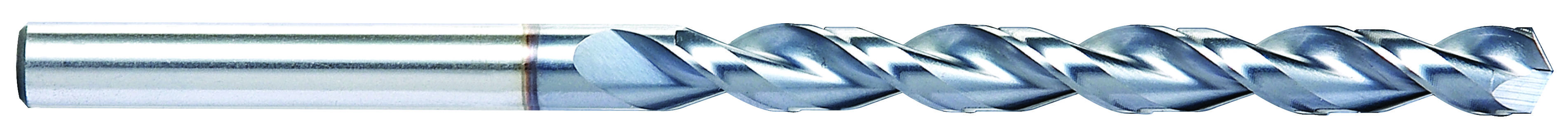

| Product Type | Screw Machine Length Drill Bit |
