Product Specifications
| Manufacturer Part Number | DN515241 |
| Diameter (Inch) | 5/52" |
| Diameter (Decimal Inch) | 0.0960" |
| Diameter (mm) | 2.44mm |
| Shank Diameter (Inch) | 5/52" |
| Shank Diameter (Decimal Inch) | 0.0960" |
| Shank Diameter (mm) | 2.44mm |
| Flute Length (Inch) | 13/16" |
| Flute Length (Decimal Inch) | 0.8100" |
| Flute Length (mm) | 20.64mm |
| Overall Length (Inch) | 1-13/16" |
| Overall Length (Decimal Inch) | 1.8125" |
| Overall Length (mm) | 46.04mm |
| Point Length (Decimal Inch) | 0.0224" |
| Point Length (mm) | 0.57mm |
| Wire Size | #41 |
| Number of Flute | 2 |
| Point Angle (Degree) | 130 Degree |
| Helix Angle (Degree) | 38 Degree |
| Cutting Direction | Right Hand |
| Material | HSS-E |
| Coating | TiN |

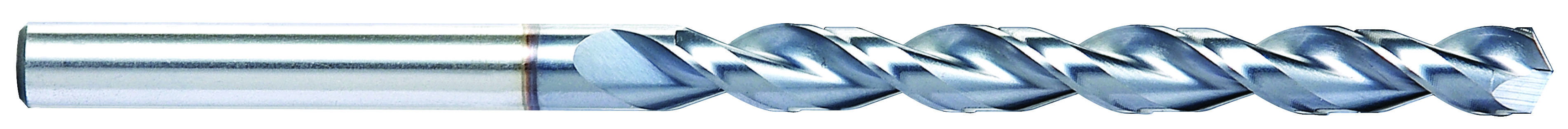

| Product Type | Screw Machine Length Drill Bit |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
YG1
Flute Length (Inch):
13/16"
Flute Length (Decimal Inch):
0.8100"
Flute Length (mm):
20.64mm
Overall Length (Inch):
1-13/16"
Overall Length (Decimal Inch):
1.8125"
Overall Length (mm):
46.04mm
Material:
HSS-E
Finish/Coating:
TiN
