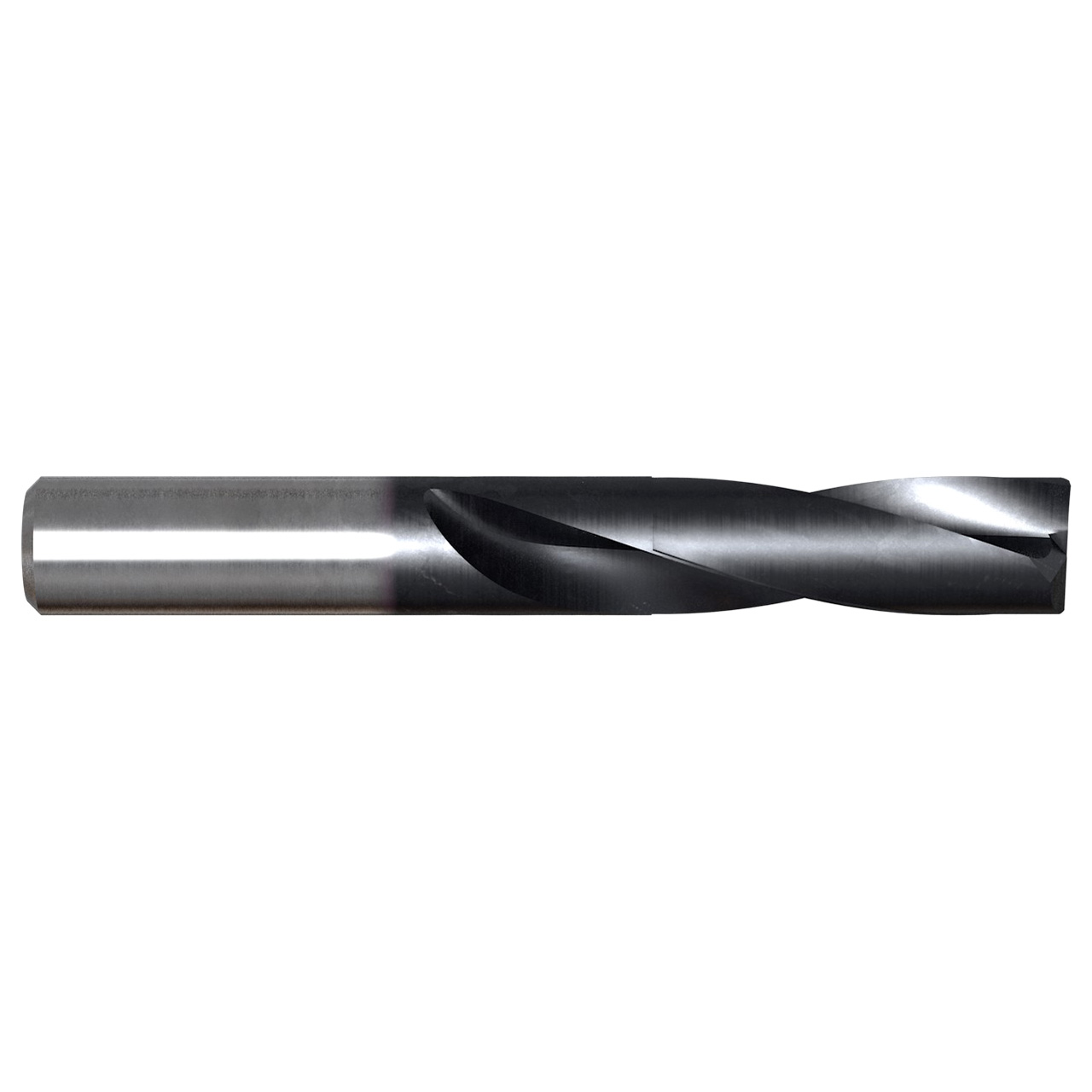

| Manufacturer Part Number | DPP447048F |
| Diameter (Inch) | 3/4" |
| Diameter (Decimal Inch) | 0.7500" |
| Diameter (mm) | 19.05mm |
| Shank Diameter (Inch) | 37/47" |
| Shank Diameter (Decimal Inch) | 0.7874" |
| Shank Diameter (mm) | 20.00mm |
| Flute Length (Inch) | 2-20/21" |
| Flute Length (Decimal Inch) | 2.9528" |
| Flute Length (mm) | 75.00mm |
| Overall Length (Inch) | 5-23/73" |
| Overall Length (Decimal Inch) | 5.3150" |
| Overall Length (mm) | 135.00mm |
| Number of Flutes | 2 |
| Point Angle | 180 Degree |
| Helix Angle | 20 Degree |
| Length/Diameter | 2 |
| Series | DPP447 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Coating | X-Coated |
| Material | Carbide |
| Hole Tolerance | h7 |
| Application | P,K |
| Cutting Direction | Right |
