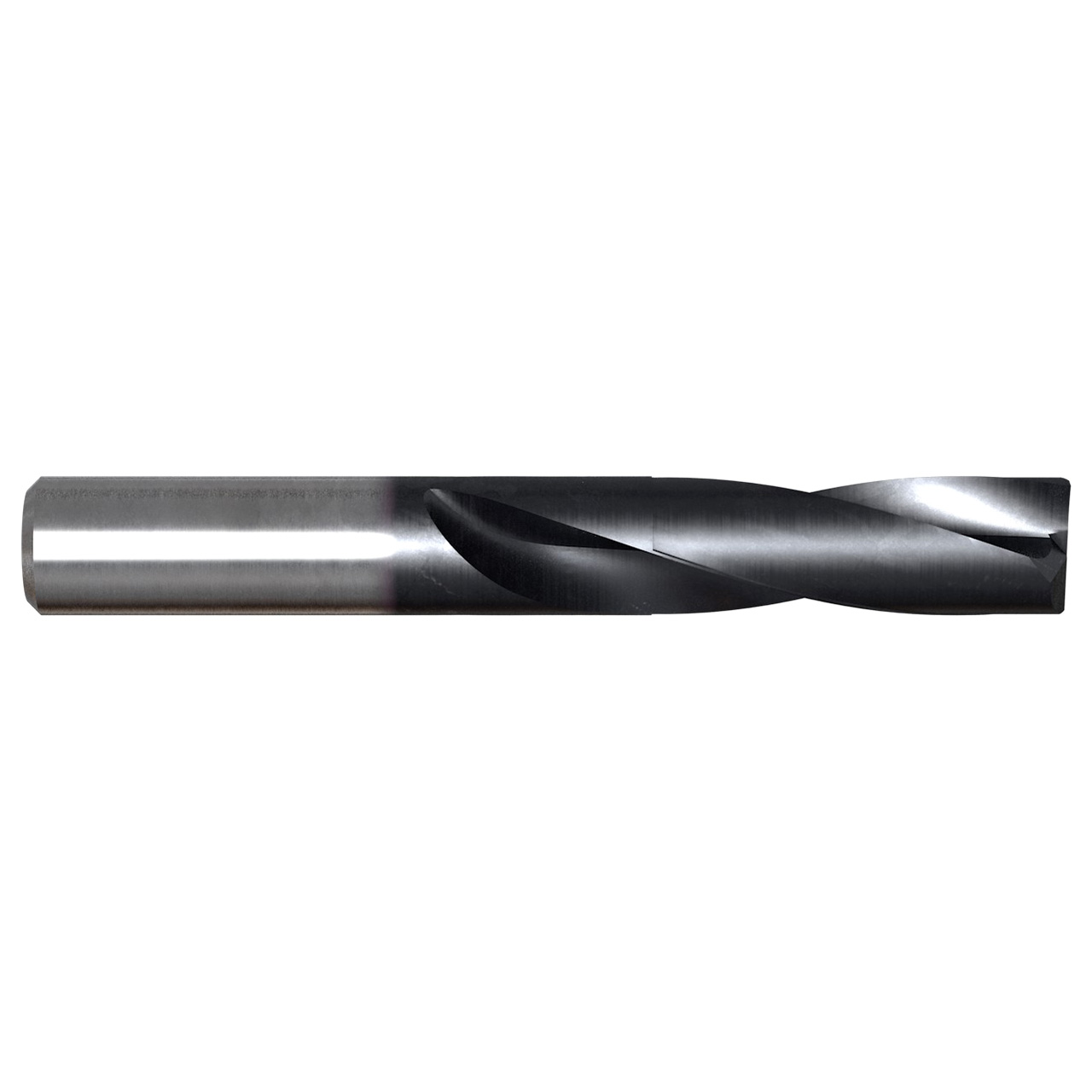

YG1 DPP447195 | 0.7677" Diameter x 0.7874" Shank x 5.7087" OAL 2 Flute X-Coated Carbide Dream Drill without Coolant Hole

$564.38 $383.78
(You save $180.60)
Brand:
YG1
Drill Size (Decimal Inch):
0.7677"
Drill Size (mm):
19.50mm
Drill Point Angle:
180 Degree
Overall Length (Decimal Inch):
5.7087"
Overall Length (mm):
145.00mm
Finish/Coating:
X-Coating
Material:
Carbide
Shank Diameter (Decimal Inch):
0.7874"
Shank Diameter (mm):
20.00mm
Flute Length (Decimal Inch):
2.9528"
Flute Length (mm):
75.00mm
interval quantity:
1
SKU:
10031832
UPC:
Weight:
1.15 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
YG1 DPP447195 | 0.7677" Diameter x 0.7874" Shank x 5.7087" OAL 2 Flute X-Coated Carbide Dream Drill without Coolant Hole

Product Specifications
Manufacturer Part NumberDPP447195
Diameter (Inch)76/99"
Diameter (Decimal Inch)0.7677"
Diameter (mm)19.50mm
Shank Diameter (Inch)37/47"
Shank Diameter (Decimal Inch)0.7874"
Shank Diameter (mm)20.00mm
Flute Length (Inch)2-20/21"
Flute Length (Decimal Inch)2.9528"
Flute Length (mm)75.00mm
Overall Length (Inch)5-17/24"
Overall Length (Decimal Inch)5.7087"
Overall Length (mm)145.00mm
Number of Flutes2
Point Angle180 Degree
Helix Angle20 Degree
Length/Diameter2
SeriesDPP447
Shank Toleranceh6
Coolant ThroughNo
CoatingX-Coated
MaterialCarbide
Hole Toleranceh7
ApplicationP,K
Cutting DirectionRight

Warning:

This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.

For more information, visit www.P65Warnings.ca.gov
