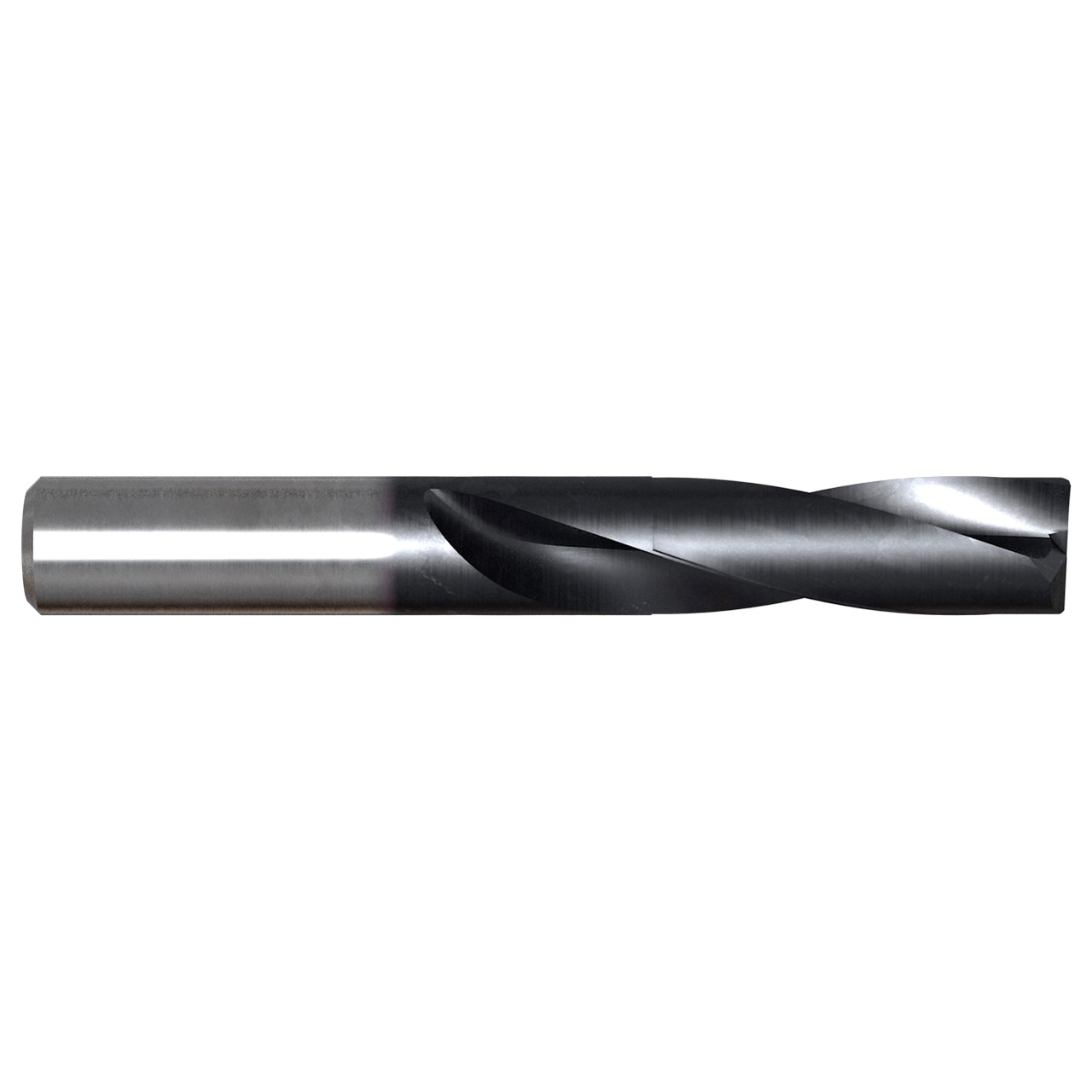

| Manufacturer Part Number | DPP447064 |
| Diameter (Inch) | 1/4" |
| Diameter (Decimal Inch) | 0.2520" |
| Diameter (mm) | 6.40mm |
| Shank Diameter (Inch) | 23/73" |
| Shank Diameter (Decimal Inch) | 0.3150" |
| Shank Diameter (mm) | 8.00mm |
| Flute Length (Inch) | 1-2/11" |
| Flute Length (Decimal Inch) | 1.1811" |
| Flute Length (mm) | 30.00mm |
| Overall Length (Inch) | 2-65/86" |
| Overall Length (Decimal Inch) | 2.7559" |
| Overall Length (mm) | 70.00mm |
| Number of Flutes | 2 |
| Point Angle | 180 Degree |
| Helix Angle | 20 Degree |
| Length/Diameter | 2 |
| Series | DPP447 |
| Shank Tolerance | h6 |
| Coolant Through | No |
| Coating | X-Coated |
| Material | Carbide |
| Hole Tolerance | h7 |
| Application | P,K |
| Cutting Direction | Right |
